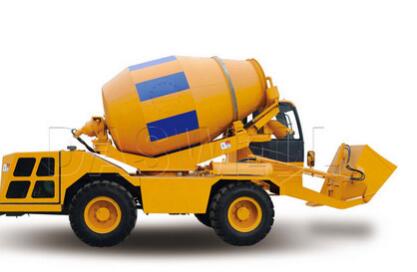

Self loading concrete mixer

Concrete Mixers

Brand Name:Haomei Machinery
Type:SL
Port:Any port in China

Send - Email
Contact Us
+86-371-65621392
Download PDF

Self loading concrete mixers can automatically produce and transport concrete on-site for its self-loading design, it is really efficient! During project, it loads materials by self, don’t need any other auxiliary equipment, and it has characteristics of small volume, four wheels-driving and steering. it can discharge concrete at 290 degrees, which is much more convenient in all kinds of concrete production construction site, particularly small and narrow construction sites, very cost-saving for the majority of users. Self loading concrete truck mixer mainly mixes plastic concrete and semi-plastic concrete. Haomei machinery self loading concrete mixers have many types for your reference: 1.2cub, 1.8cub, 2.6cub, 3.5cub, 4cub, 5.5cub and 6.5cub.

Features:

1. Mobile, very convenient to move, especially in small project site.
2. Automatic loading and discharging, which will largely improve working efficiency.
3. Easy operation, high mixing quality and high working efficiency.
4. Easy maintenance, which will largely save labors for construction projects.
5. Independent water supply system ensures the high quality of concrete.

6. Short mixing time. It assures the high productivity.

Model	1.2m3	1.8m3	2.6m3	3.2m3	4m3
Overall Dimensions (L×W×H) (mm)	6400×2550×2650	7300×2600×2650	7800×2720×3000	7830×2680×3300	7500×2850×3500
Wheelbase (mm)	2400	2650	2800	2900	2400
Weight (kg)	4185	5666	6500	7200	9000
Drive Form	Torque converter	Torque converter	Torque converter	Torque converter	Torque converter
Top Speed (km/h)	30	30	30	30	35
Maximum Grade	30°	30°	30°	30°	30°
Min. Turning Radius (mm)	4700	5270	5300	5300	4800
Min. Ground Clearance (mm)	280	280	380	380	330
Engine Model	Quanchai 4B2-75m22	4100 Yunnei supercharger	Yuchai 4102 pressurized	Yuchai 4105 pressure boost	Yuchai YCD4J22G
Rated Power (kw)	55	78	78	85	85
Transmission Model	ZL-265 gearbox	ZL-265 power shift gearbox	ZL-280 power shift transmission	ZL-280 power shift transmission	ZL-280 power shift transmission
Gear	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back
Fuel Tank (L)	63	63	75	75	230
Total Hydraulic System Capacity (L)	63	63	75	75	170
Oil (L)	16	16	16	16	16
Reducer	KY07-2-0	HJ80-43	HJ80-43		KY07-5-J
Pump	FC 50/40	FC 50/40	CBG9 2050/2032		Parker pump
Motor	BM5-160	BM5-160	BM5-160		HAA2FM56/61W-VTD527
Water Tank Capacity (L)	400	400	500		660
Water Supply	Time relay	Time relay	Time relay		Time relay
