CEMENT SILOS HIGHLIGHTS

•

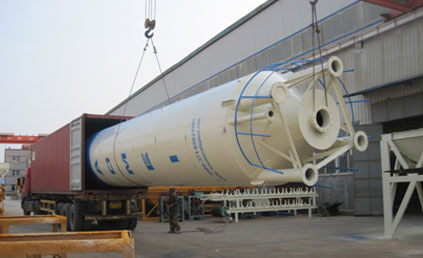

  WELDED TYPE CEMENT SILOS (SINGLE PIECE)

  Welded Type Cement silos are the best choice for short distance transportation and require minimum installation time. Being shipped as a single piece all that needs to be done is lift the silo and put it on the foundation. Another advantage of welded silos is their leakproof structure. It provides 0 water permeability.The standard capacity of welded silos usually does not exceed 62 tons; this is limited by the convenience of the silo for transportation. The minimum capacity of the welded silo is 22 tons.
  The standard configuration of the welded silo includes: silo bank with a cone, support frame, cement injection pipe with BRS fitting, operating platform with external ladder, flange for fastening the disk shutter.
  BOLTED SILO CAPACITIES :22-30-50-60 tons

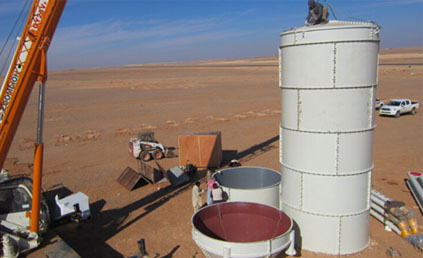

• BOLTED TYPE CEMENT SILOS

  Bolted Type Cement silos are the best choice for long distance transportation as 2 silos with 2 sets of screw conveyors, filters and other equipment can be fit in one 40FT open top container. All components of bolted type cement silos are made by sensitive CNC laser cutting technology and the shape is given to bended parts by using bending molds. There is almost zero tolerance on the sensitivity of the matching holes.Cement silos whose capacity is more than 100 tonnes are manufactured as bolted type most of the time. To manufacture the silos as bolted brings advantage of space saving during transportation.While offering great transportation advantages bolted silos require more time for installation. Correct water sealing must be applied. Silo can be shipped on short distances after being put together.
  BOLTED SILO CAPACITIES : 50-75-100-120-150-200-250-300-500 tons


•

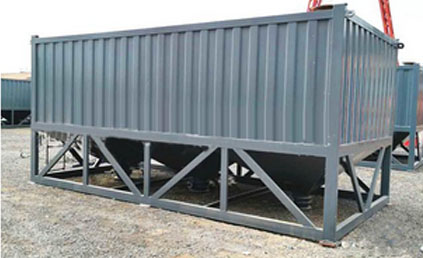

  Portable cement silos and Horizontal cement silo

  There are usually two types of cement silo namely portable cement silos and horizontal cement silo. The horizontal cement silo is usually transported using a truck to the construction site on demand. Cement storage silos have fully electronic weighing systems, which is more convenient and accurate than other ways of storage. It is very necessary to purchase a cement silo china for those concrete producers that have a big number of clients and are looking forward to expanding their business. Haomei machinery cement storage silo comes with one year warranty, and our silos are of high quality, compact structure, easy maintenance and affordable prices.

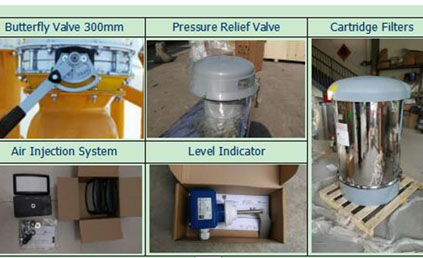

• SILO RELATED EQUIPMENT

  Most of the time, as per our clients’ needs, we deliver our silos together with all other necessary cement silo equipment such as cement screw conveyor with the desired diameter & length, air dust filter, pressure safety valve, top & bottom level indicators, air fluidization nozzles, pulse valve and cone butterfly valve for manual cement discharging. In case of using the silo for cement terminal or similar application, the screw conveyor can be connected to a loading below to charge the cement to cement trucks.
