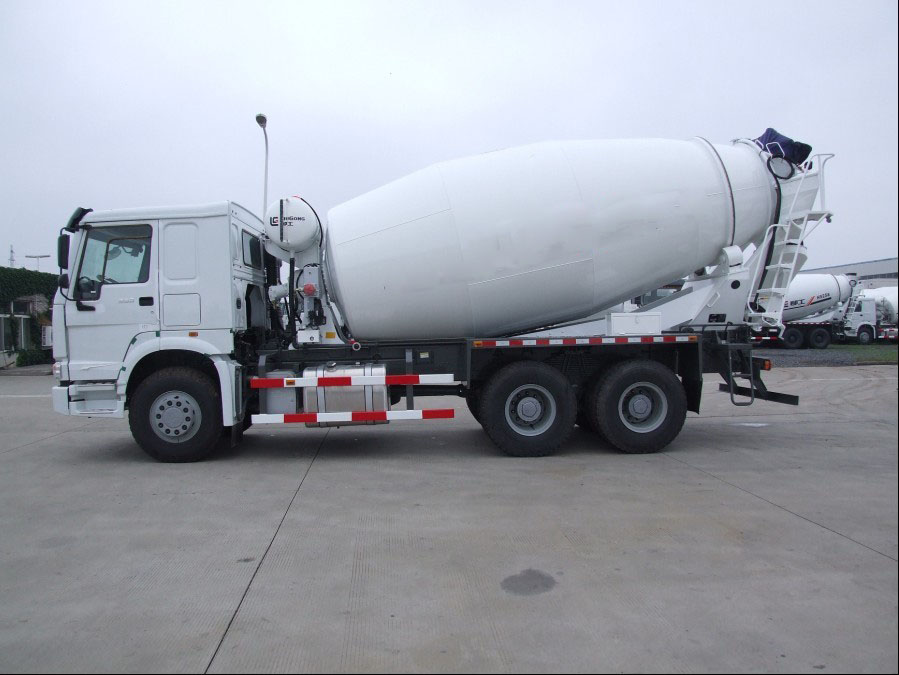

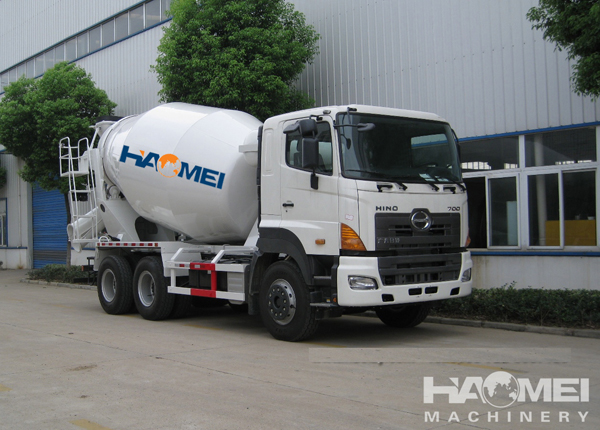

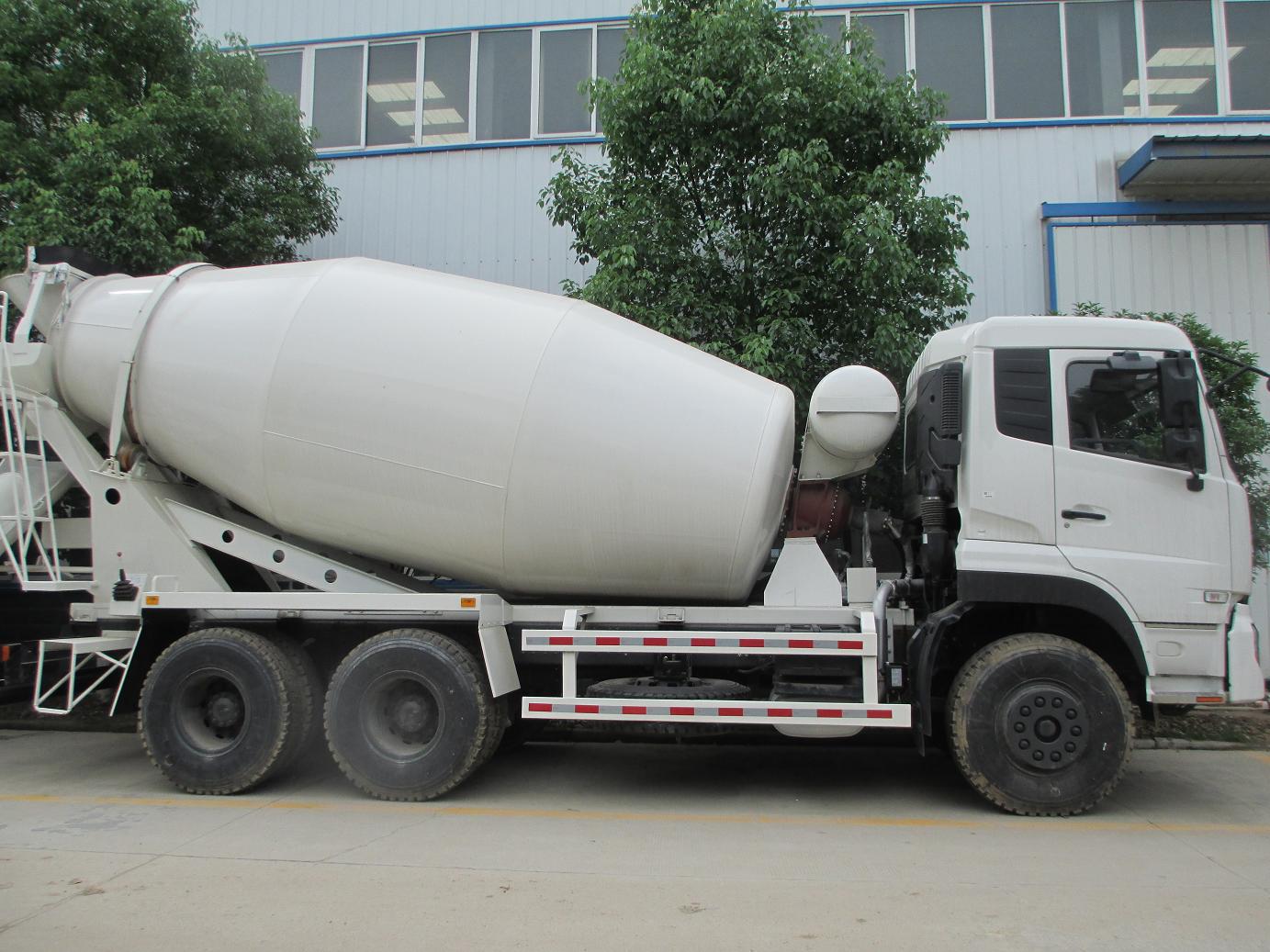

Add to Product FavoritesConcrete mixer truck or cement truck is mainly used in transporting concrete for concrete batching plants. It is mainly made of chassis, agitator, pressure gauge, intelligent controller, transmission or drive system, water supply device, etc. Among this, four units such as chassis, agitator, drive system, water supply device are imported from other countries due to several technical bottlenecks. The combination of front end of mixing drum and reduction box is installed on the front part of shelf and rear end of mixing drum is supported by two rear wheels. Additionally, the mixing drum is a cylinder which is thin at both ends and thick in the middle. Its inside is equipped with clockwise fan blade which will keep mixing the concrete during transportation to prevent it from solidifying.
Model |
HM12-D |
|
Specification |
Unit |
Value |
Mixing Capacity |
m³ |
12 |
Tank Volume |
m³ |
17.93 |
Feeding Speed |
m³/min |
≥3.5 |
Discharging Speed |
m³/min |
≥3 |
Residual Ratio of Discharging |
% |
≤0.5% |
Water Supply System |
|
Air pressure |
Water Tank Volume |
L |
400 |
Overall Dimension |
mm |
9880*2496*3920 |
Chassis Model |
|
HOWO |
Clutch |
φ |
φ430 Monolithic dry type |
Min Ground Clearance |
mm |
245 |
Max Speed |
km/h |
86 |
Engine Max Output Power |
kw |
340 |
Emission Standard |
|
Euro Ⅲ |
Rated Load |
kgs |
15000 |
Overall Weight |
kgs |
25000 |
Wheelbase |
mm |
4025+1350 |
1. High-intensity drum material, featuring better wear-resistance and long service life;
2. Optimized mixing blades, low material residue;
3. High-quality parts, reliable running;
4. Excellent performance and convenient operation;
5. Imported original hydraulic system
Wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed concrete works.
