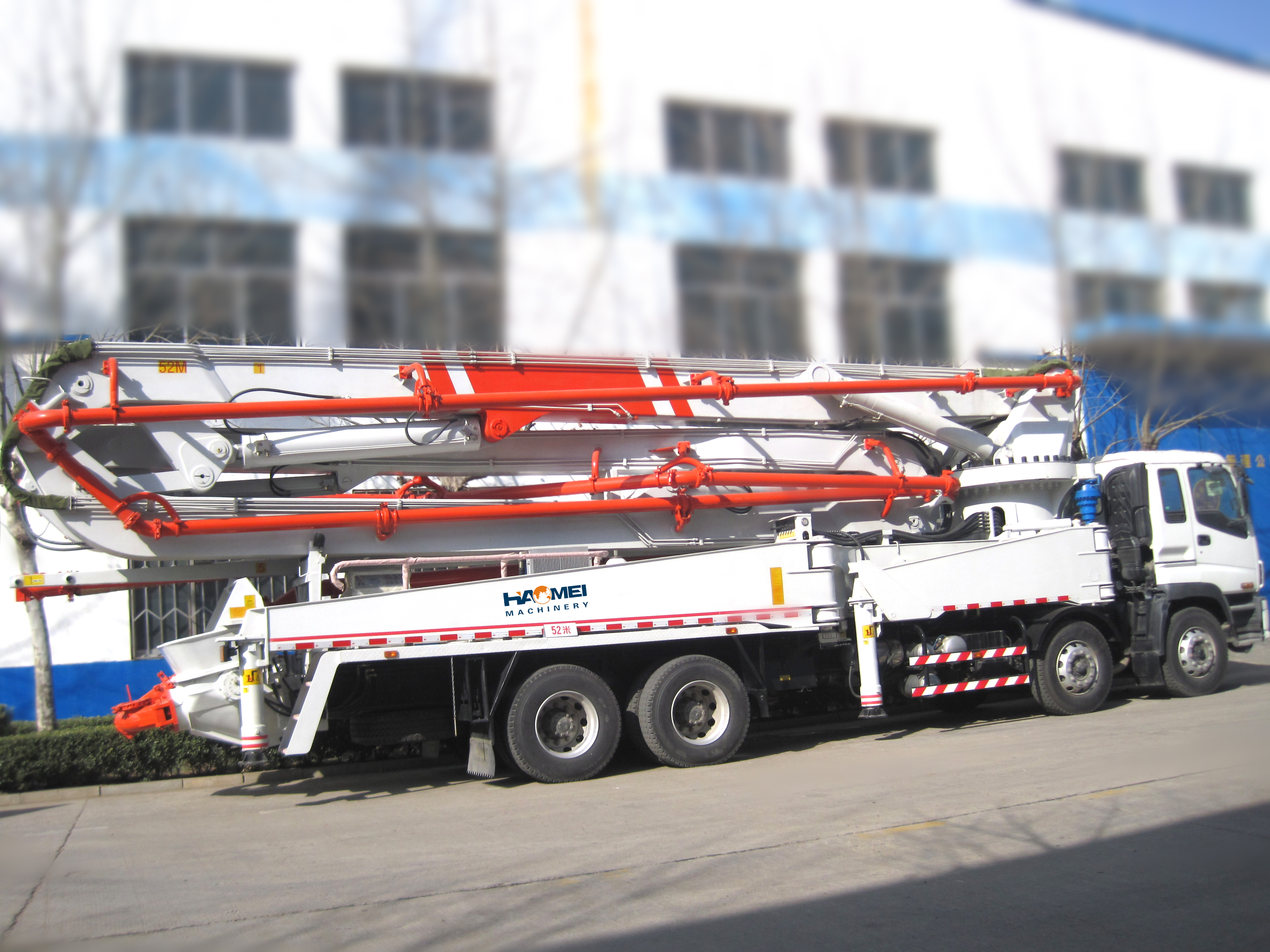

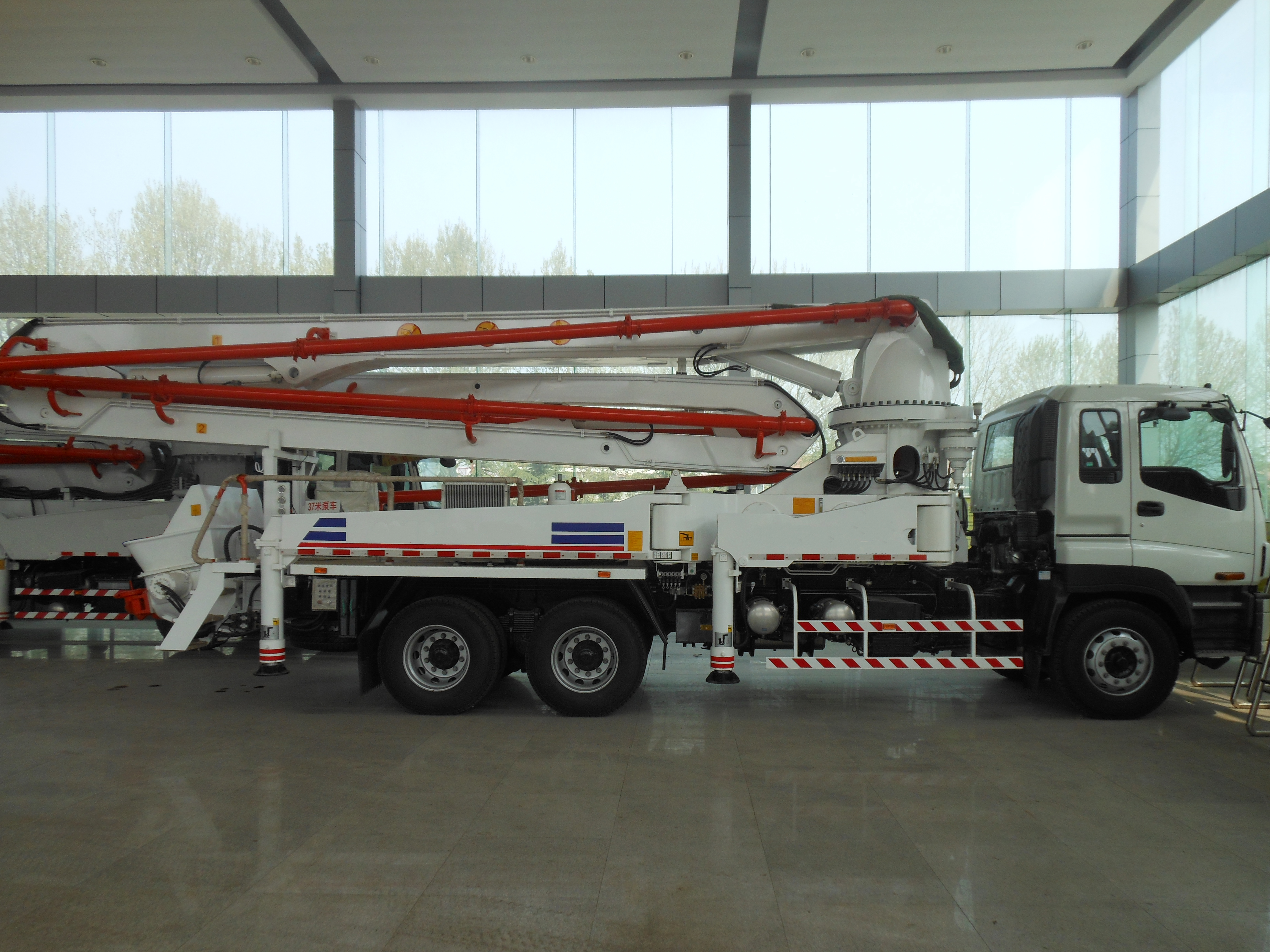

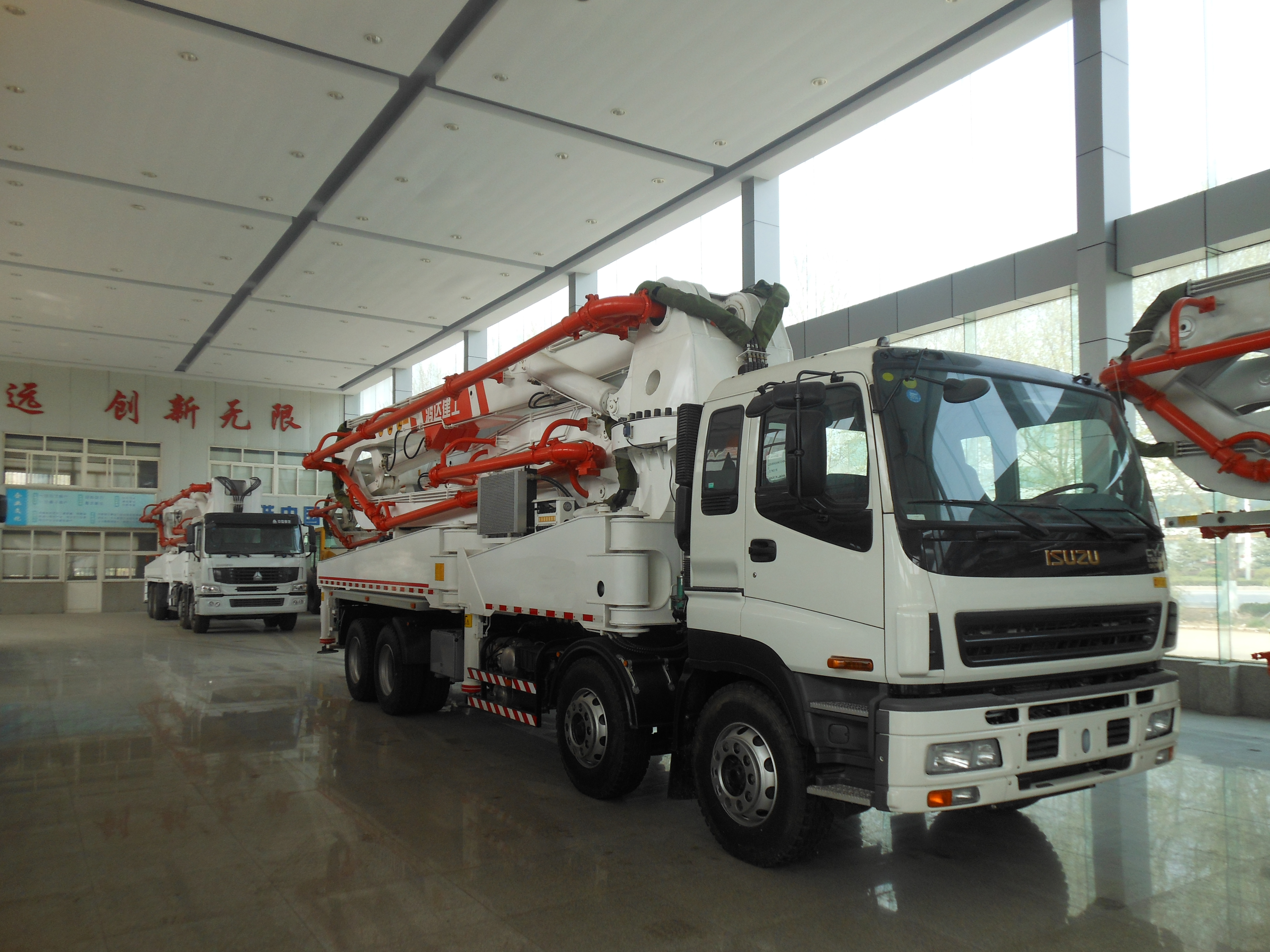

Add to Product FavoritesThe Haomei truck-mounted concrete pump HDT5291THB 37/39 offers specific advantages for additional customer value. The boom has a vertical reach of 121 ft or 37 m and comes in an innovative 4-section Z- or R-fold design. The boom is extremely torsion resistant, ensuring that vibrations are reduced to an absolute minimum when unfolding at the construction site. To ensure a balanced weight distribution, the concrete pipeline is configured close to the boom on both left and right hand sides. Minimal pressure loss over the entire length of the distributor boom is guaranteed by the pipe bend in the concrete pipeline featuring a radius of 10.8 inch (275 mm).
The concrete pump truck is used as one of the main equipments that transports concrete. The vibration and dependability directly influence the progress of construction progress
name | unit | HDT5291THB-37/4 | HDT5291THB-39/4 |
output in theory | m3/h | 125 | 125 |
index of the pump carry capacity | Mpa.m3/h | 586 | 586 |
theoretic pumping pressure | Mpa | 8.5 | 8.5 |
bucket volume | L | 700 | 700 |
height of top surface of bucket | mm | 1370 | 1370 |
model of distribution valve | S Valve | S Valve | |
max. operation radius | m | 32.6 | 34.7 |
max. operation height | m | 36.6 | 38.7 |
max. operation depth | m | 25.5 | 27 |
open height of boom | mm | 8450 | 8830 |
distance between front landing legs | mm | 7058 | 6800 |
distance between rear landing legs | mm | 6848 | 7000 |
distance between front & rear landing legs | mm | 6790 | 7432 |
diameter of delivery pipe | mm | 125 | 125 |
length of hose pipe | m | 4 | 4 |
rotary range of boom | 365° | 365° | |
quantity of boom | 4 | 4 | |
rotary angle of each boom | ° | 92/180/180/270 | 91/180/180/180/270 |
wire line control distance | m | 33 | 33 |
romote control distance | m | 200 | 200 |
max. speed | km/h | 90 | 90 |
min. turn radius | mm | 8800 | 8800 |
brake distance | m | 7 | 7 |
approach angle | ° | 16 | 16 |
departure angle | ° | 11 | 11 |
chassis model | HOWO ZZ5307N4647C | HOWO ZZ5307N4647C | |
wheel base between the first & the second axle | mm | 4600 | 4600 |
wheel base between the second & the third axle | mm | 1350 | 1350 |
front tread | mm | 2022 | 2022 |
rear tread | mm | 1830 | 1830 |
max. engine output power | kw | 247(2200r/min) | 247(2200r/min) |
max. engine output torque | n.m | 1350(1100-1600r/min) | 1350(1100-1600r/min) |
max, gradient ability | % | 35 | 35 |
fuel consumption | L/100km | 34 | 34 |
(××)out dimension(L×W×H) | mm | 12000×2490×3850 | 12500×2490×3950 |
total weight | kg | 29000 | 29500 |
1. Using imported engine, with powerful and stable performance
2. The transmission system imported from Germany
3. Drive mode stability
4. Imported steering gear with flexible and reliable features
5. Use PLC controller and other imported components.
6. Remote control using the HBC products
7. Boom welding of high strength materials, to be reliable construction
1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.
