Truck mounted concrete mixer,8x4 Concrete Mixer Truck 14 Meter Cubic-haomei machinery-

Product Overview Features and Applications Strength Packaging and Delivery

Product Overview

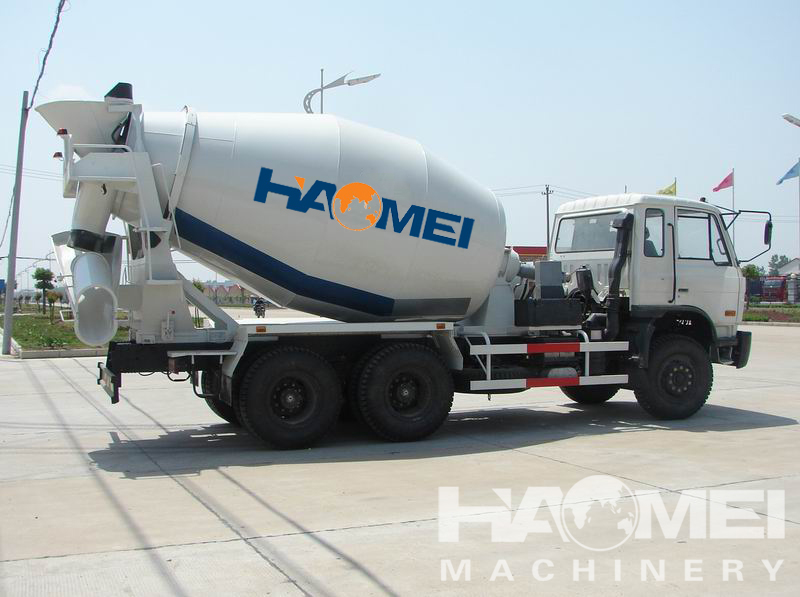

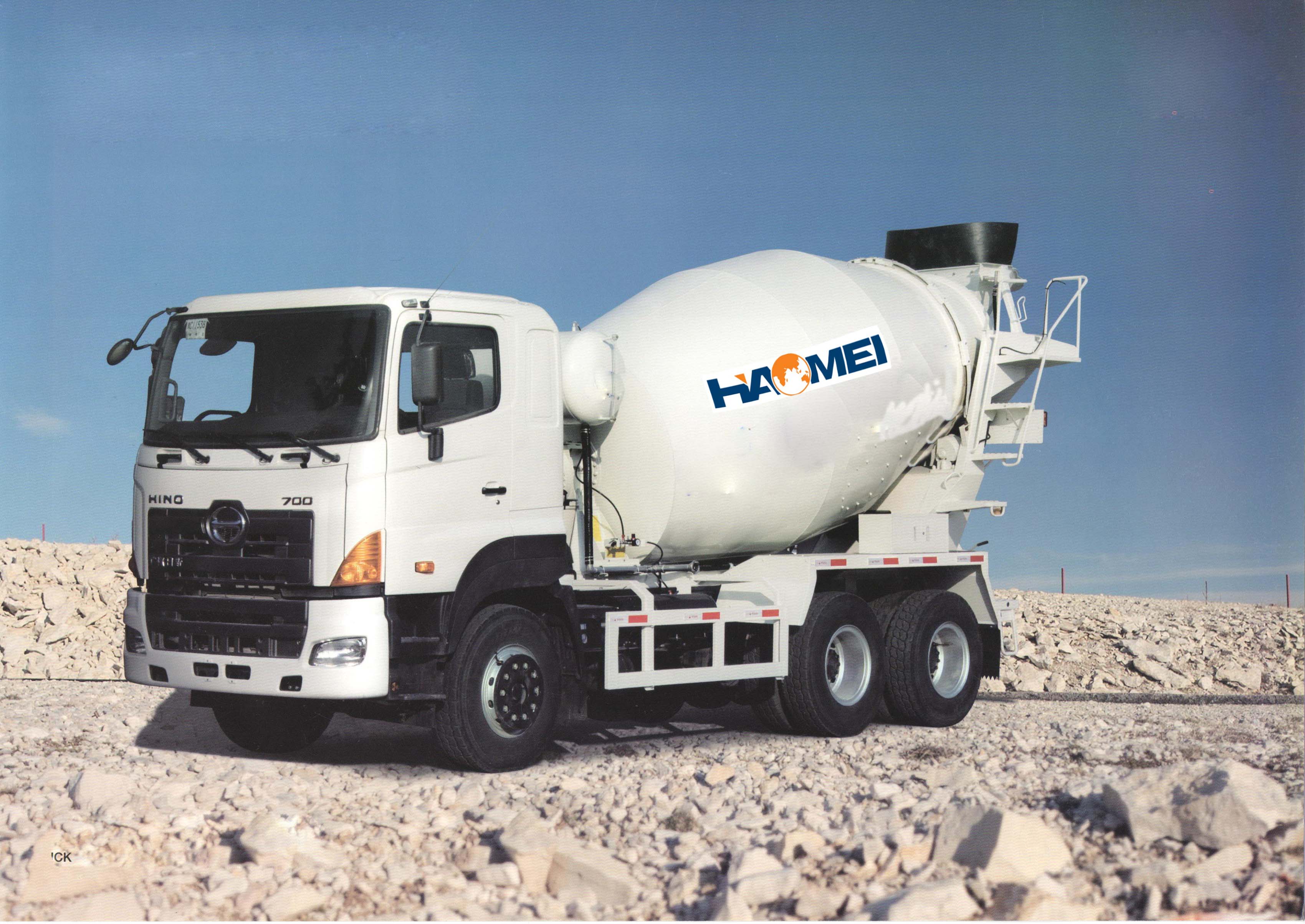

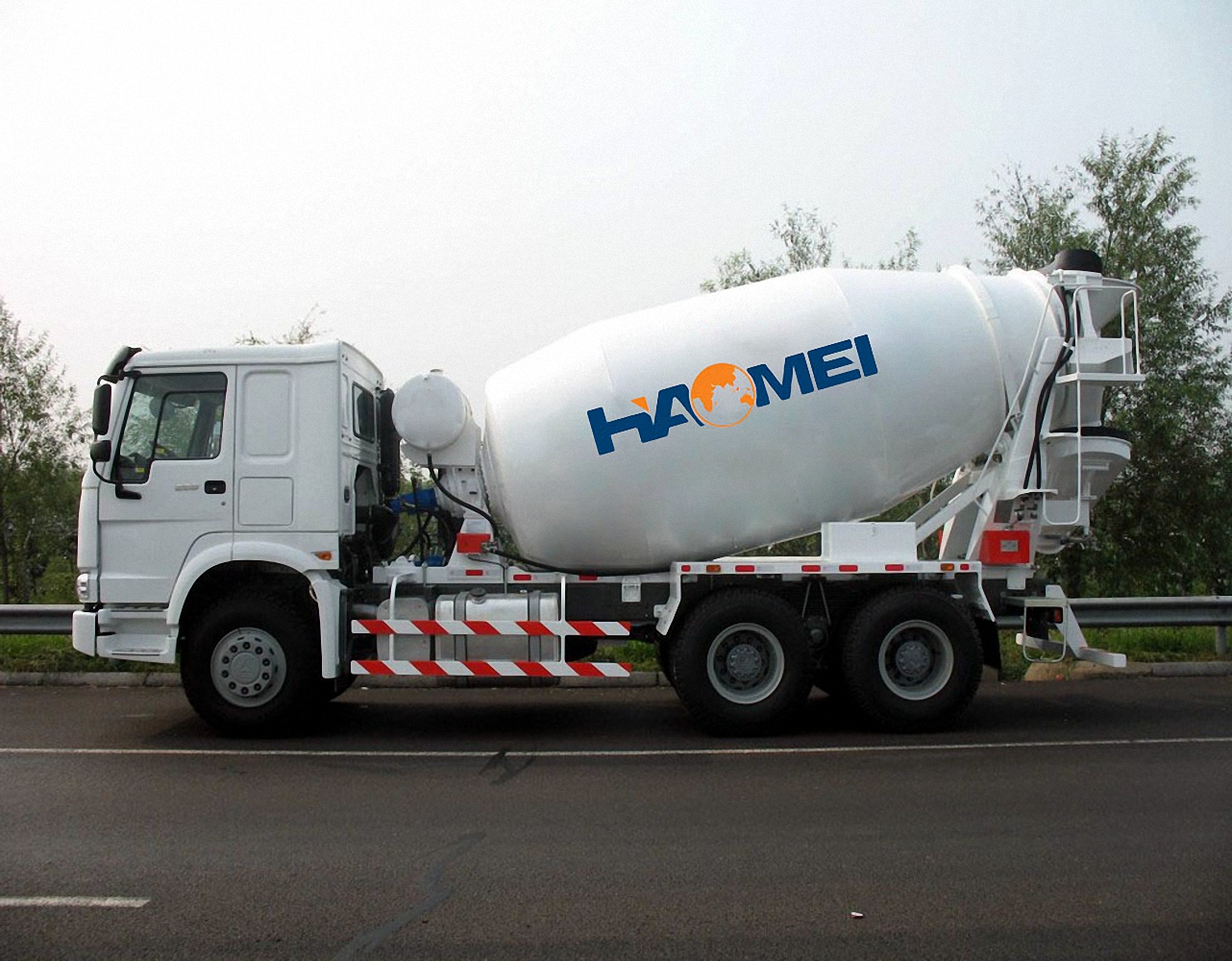

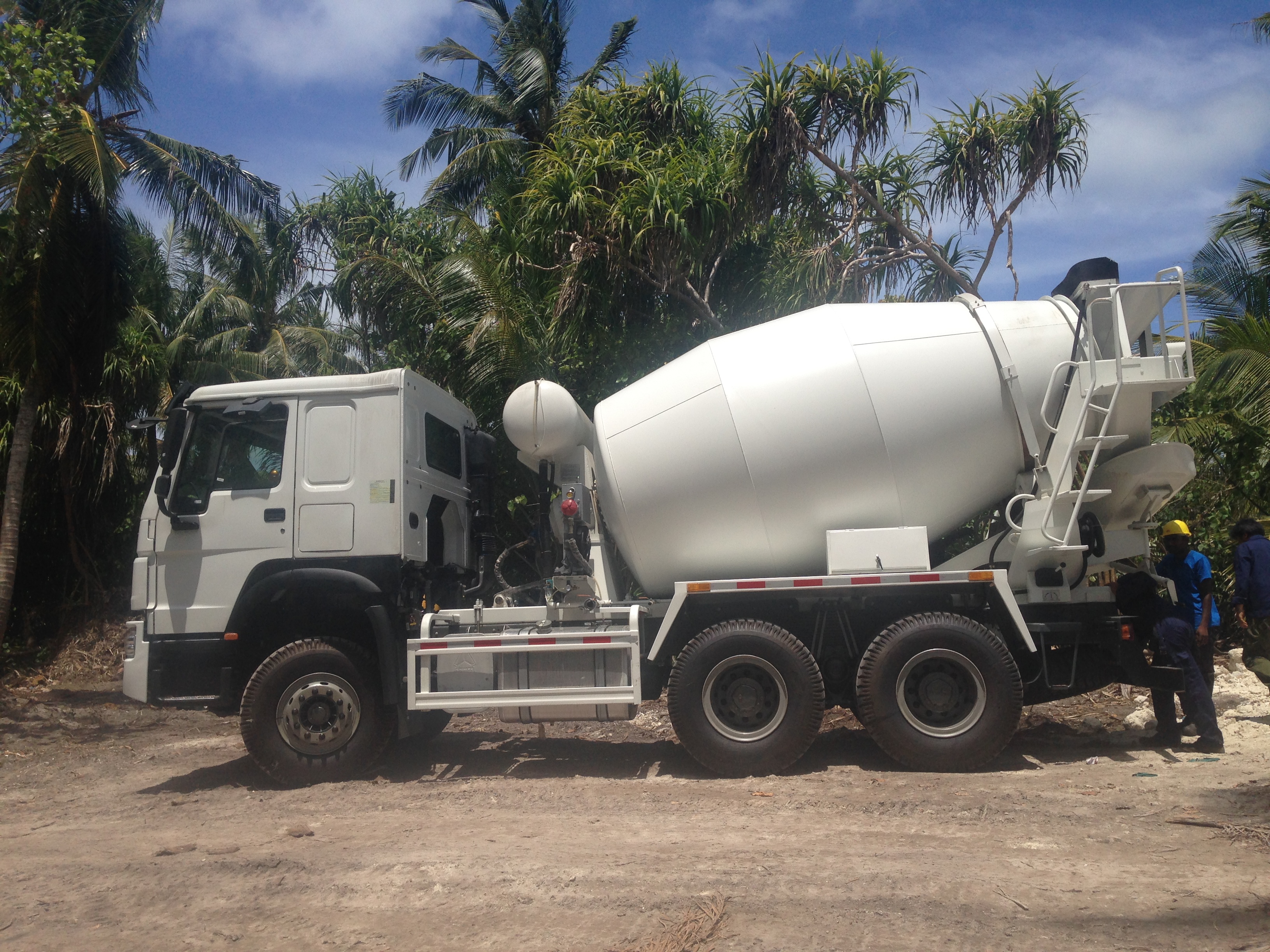

Truck mounted concrete mixer is an efficient concrete transporting equipment which is favorable all over the world. In Haomei machinery, the mixer can cover general construction demands, because the capacity of our equipment is about from 3 m3/h to 16 m3/h. Therefore, whether it is for large construction project or small one, we can help you opt for the most ideal one which can perfectly match your construction needs. Up to now, as one of well-known truck mounted concrete mixer manufacturers, our trade have extended throughout the world and our products are used in many countries, including Kenya, Russia, Algeria, Uganda, Mexico etc. Products made by Haomei truck mounted concrete mixer manufacturer has been come into notice due to its excellent performance, top quality and reasonable price.
1. Concrete mixer truck opting left hand drive or right hand driven.
2. Optional for chassis: 4x2, 4x4,6x4, 6x6, 8x4, 8x8 models.
3. 3m3, 5m3, 6m3, 8m3, 9m3, 10m3, 12 m3 14m3 etc, many capacity are available to choose.
4. Provide different brand chassis: DONGFENG, SINTRUK, SHACMAN, NORTH BENS, FOTON, ROWOR, HINO, ISUZU, HUUNDAI, JMC.

Model	HM14-D
Specification	Value
Mixing Capacity	14m³
Tank Volume	20.1m³
Feeding Speed	≥3.5m³/min
Discharging Speed	≥3m³/min
Residual Ratio of Discharging	≤0.5%
Water Supply System	Air pressure
Water Tank Volume	400L
Overall Dimension	1030024963920mm
Chassis Model	HOWO
Clutch	φ430 Monolithic dry type
Min Ground Clearance	245mm
Max Speed	90km/h
Engine Max Output Power	340kw
Emission Standard	Euro Ⅲ
Rated Load	16000kgs
Overall Weight	31000kgs
Wheelbase	1800+3200+1350mm

Features

1. The tank body uses double helical blades that makes its density moderate, with symmetrical mixing board on the front taper place; double blades and guiding blades of discharge are installed on the outlet of tank, which makes the discharge more evenly, faster in speed, and convenient for the pumping transportation of other devices (such as automobile pump).
2. Low angle for mixing drum can extend the service life of hydraulic pump, motor and reducer. The sub frame uses high intensity square tube with damping in the central area that can play role when vehicle is at full load and under the bad conditions of road, which can lower the center of gravity of truck and make it move more smoothly.
3. The upload production of this mixer adopts multiple advanced technology, which can produce various types of mixer in volume such as 3m3, 5m3,6m3,8m3, 9m3,10m3, 12 m3,18 m3 etc.

Applications

Wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed concrete works.

Why Choose Haomei Machinery.

Technologies:Top polishing technology guarantees good luster and smooth surface.
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.
