YHZS75 Mobile Concrete Batching Plant

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Product Overview

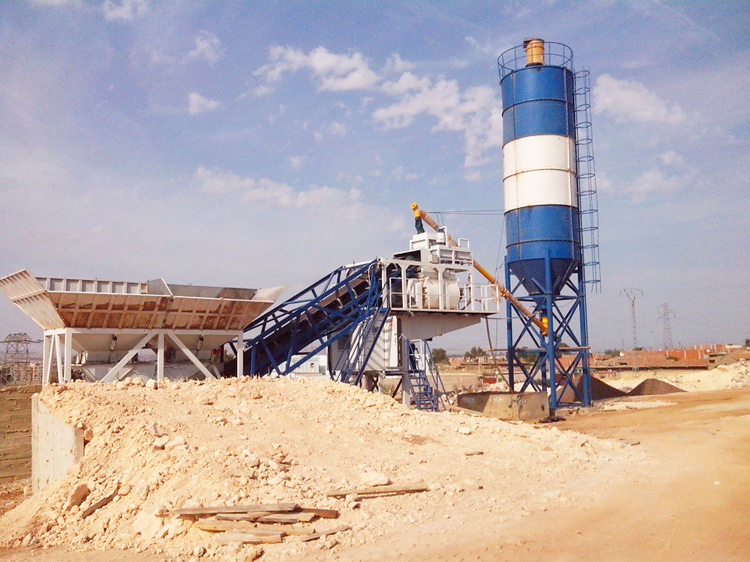

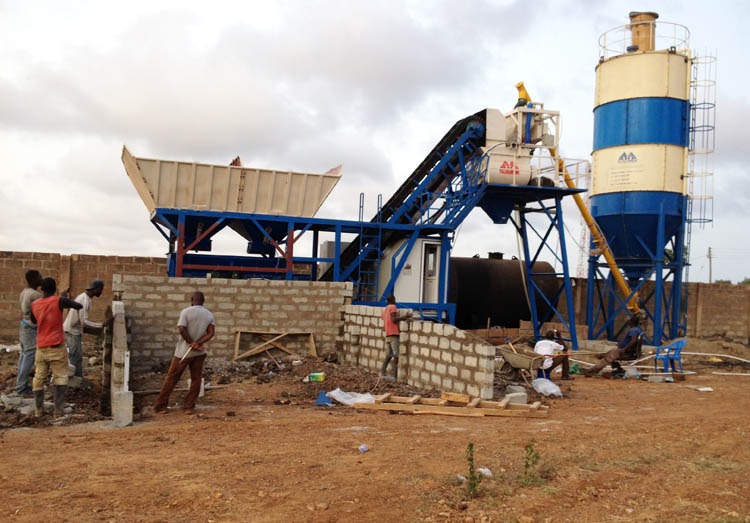

YHZS75 mobile concrete batching plant, whose production capacity is 75m³/h, adopts non-foundation and non-commissioning modular design, it features for good mobility, convenient and quick installation. It only takes 3 days from installing to using. In addition to that, YHZS75 cement mixing plant adopts patent technology “click to supplement”, double control system, self-correcting technology to ensure producing high-quality concrete. YHZS75 adopt JS1500 twin-shaft compulsory mixer ad the host mixer, the mixing efficiency, mixing range wide, can fullest meet various producing requirement. YHZS75 batching plant is ideal concrete equipment for bridges, highway, port, water conservancy project and power station and so on.

YHZS75
Theoretical production capacity(m³/h) 75
Concrete mixer Type JS1500
Power(KW) 65.5
Discharging capacity(L) 1500
Aggregate size(Pebble/Macadam)(mm) 80/60
Aggregate Bin volume(m³) 12
Weighing Accuracy Aggregate (KG)  ±2%
Cement(KG) ±1%
Fly ash(KG) ±1%
Water (KG) ±1%
Additive(KG) ±1%
Total power(KW) 110KW
Discharging height(M) 3.8m
Gross weight(T) 50



Drawing YHZS75 Concrete Batching Plant Drawing Features

Adopt JS1000 twin shaft concrete mixer, bringing better mixing quality.
Plant is completely erected and tested at the factory prior to shipping.
Belt type conveyor system contributes to higher efficiency of the whole plant.
Foundation is not needed in most cases.
Four “Less”: Less transportation cost, less foundation cost, less installation area,less installation and maintenance cost.

Applications

YHZS50 mobile concrete batching plants are widely used in various kinds of large and medium scale prefabricated factory, construction site, road, bridge, airport, tunnel and many other projects. It is also suitable for water conservancy, the electric power, the railroad, the road, the harbor-wharf and so on.

Why Choose Haomei Machinery.
  • Reliability: 20 years of experiences in manufacturing concrete batching plants;
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei. packing and shipping Mobile concrete batching plant

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ
  • What is the price of a Mobile batching plant?
    Just like buying a custom computer, a quotation can only be issued after all the configurations are confirmed. By telling us the configuration you need, or the use scene, you will get a detailed quotation list in 24 hours.
  • How much will it cost for the Mobile concrete plant to be delivered?
    Before your equipment is ordered, you should know the totals for what it will cost, including freight and insurance, to have all the equipment delivered to your exact address or shipping port. We need to specify the exact equipment you are considering for purchase in detail before providing you a freight offer. You would normally obtain an exact freight offer after you have visited me or have seen the equipment in operation. We don’t provide freight quotes until we both know exactly what you need and have been quoted on equipment.
  • what range size cement Silos you supply?
    The regular size is 30T- 300T, and the biggest Bolted Type Silos can up to 1500T .
  • What kind of spare parts you supply?
    All Batching plant parts, including mechanical processing parts, mixer wearing parts, pneumatic fittings, load cell, belt conveyor parts, roller, motors, bearings, electrical elements & cables, switch board and so on
  • What should I do if experiencing a problem on our batching plant?
    Please email or call us what it happen, show us the symptom details and photos, then our engineer will guide you how to cover it. Our service line will be on line 24/7/365.
