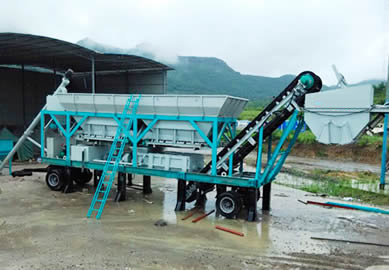

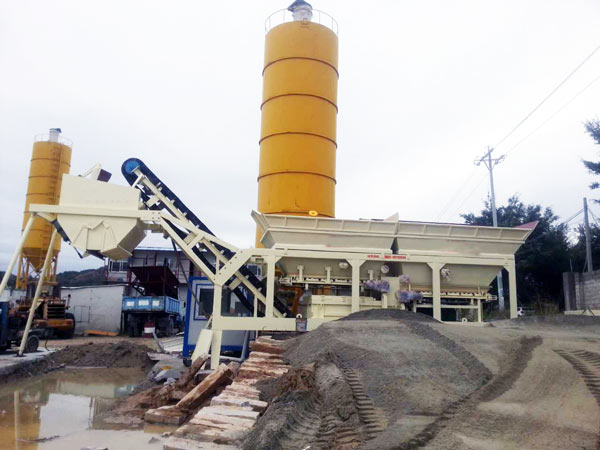

Mobile Stabilized Soil Mixing Plant

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Product Overview

Mobile type stabilized soil mixing station equipment is Aimix ‘s continuous development and upgraded model of stable soil mixing equipment, which is very suitable for short term or medium term projects to produce stabilized soil for road base, airport, stadium and etc; It has the advantages of excellent equipment performance, advanced technology, reasonable structure, reliable work, convenient use, easy repair, high productivity, accuracy ratio, mix evenly. It is the ideal base material mixing device to construction unit.

Model YWCB120 YWCB200 YWCB300
Mixer Type Dual Horizontal Axes Forced Mixer
Rated Productivity(t/h) 120 200 300
Aggregate Bin Volume(m3) 3×4 3×6 3×8
Aggregate Diameter(mm ) ≤60
Weighing Precision(%) Aggregates ±2.5, Cement ±1.5, Water ±1
Feeding Height(m) 3.9 4.05 4.25
Discharging Height(m) 2.8 2.9 3.5
Trailing Speed(km/h ) 15
Total Power(KW) 95 105 120



Drawing Mobile-stabilized-soil-mixing-plant Layout Drawing Features

1. Adopting double horizontal shaft continuous mixer.
2. Equipped with industrial computer for automatic control and it can be operated manually or automatically.
3. The modular structure facilities the installation of transportation.
4. The batching plant is equipped with electronic belt scale and electronic screw scale, with better batching accuracy.
5. The water supply system adopts turbine flow transducer.
6. It can realize the containerized transport.

Why Choose Haomei Machinery.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
FAQ
  • 1. Difference Between portable Stabilized Soil Mixing Plant and stationary Mixing Plant
    Stabilized soil mixing plants are of two kinds: the portable stabilized soil mixing plant and the stationary stabilized soil mixing plant. The portable stabilized soil mixing plant has wheels on each part and can be driven by a trailer, but has low productivity. The stationary plant has larger productivity but is less flexible, and needs a firm groundwork.
