Product Overview

YHZS25 mobile concrete mixing plant is a new type ready mix batching equipment which is movable by trailing. It is uniquely and novelly designed with a simple and compact structure. One trailing unit assembles a whole working set of aggregating, weighing, conveying and mixing system, enabling it great overall mobility. By absorbing new technologies from overseas and domestic, the mobile concrete mixing plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move and operate, safe trailing, etc. It is the ideal choice for projects that require frequent movement from one construction site to another.
YHZS25 mobile concrete batching plant can be installed quickly on site. Composed of the integrate mixer, batching system, running system, feeding system, weighing system, cement silo, screw conveyor and all the necessary equipment into together, installed on a transport chassis. We can deliver YHZS series mobile concrete batching plant to construction site in the hauling situation, then install quickly on site and get it to run without debugging. This equipment has the characteristic of high automatic, well mixing, high productivity, high flexibility, convenient operation, and good stability.
By absorbing new technologies from overseas and domestic, the mobile concrete mixing plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move, etc.

Specification		Unit	Value
Theoretical productivity		m3/h	25
Weighing scale	Concrete	Kg	2000
	Cement	Kg	510
	Water	Kg	150
	Liquid addictive	Kg	15
Overall power		KW	about 60 (optional parts not included)
Power source		V/ HZ	380/50
Discharging height		M	3.8
Overall weight		T	20 (optional parts not included)
Trail speed		km/h	≤40
Specification (LxWxH)	During work	M	17x3.6x8.2
Specification (LxWxH)	During transportation	M	17.6x2.4x4.35

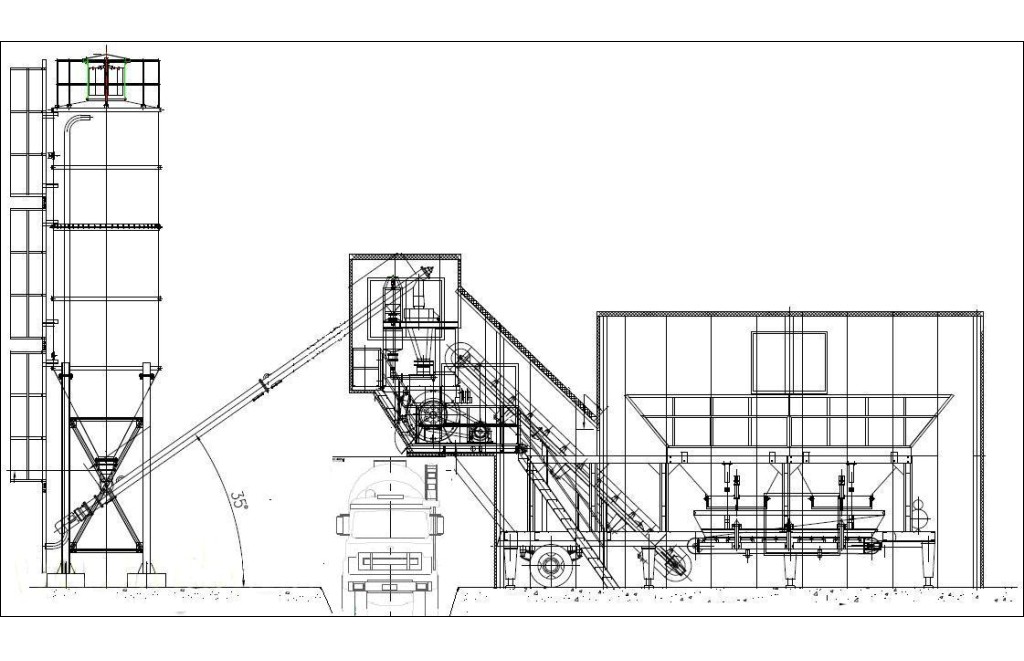

Drawing

Features

01 Fully sealed production device,it can reduce dust pollution and noise by adopting advanced dust removal system.
02 Storing,weighing,transition,mixing and discharge are all controlled by full automatic control system,it can save time and increase concrete productivity.
03 Innovative designed mixing blades can make the mixing evenly and reliable with high efficiency.
04 High quality motor vibrating screen mesh,it can greatly improve working efficiency and lower the failure rate.
05 Unique designed base trailer structure,apparently reduces floor area required.
06 Easy and reliable operation by adopting full automatic PC+PLC smart control system,it is also equipped with malfunction-indication and automatic diagnosis program for working safety

Applications

Mobile concrete batching plant is a station of material storage material, weighing, conveying, stirring, unloading and automatic control ; The process, operation and maintenance are exactly the same with fixed automatic batching plant; It is a combination of mobile and flexible, easy disassembling fast, simple storage management and other unique characteristics; Suitable for railways, Bridges, ports, water and electricity engineering construction .

Why Choose Haomei Machinery.

Reliability: 20 years of experiences in manufacturing concrete batching plants;
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei. packing and shipping Mobile concrete batching plant

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ

What is the price of a Mobile batching plant?
Just like buying a custom computer, a quotation can only be issued after all the configurations are confirmed. By telling us the configuration you need, or the use scene, you will get a detailed quotation list in 24 hours.
How much will it cost for the Mobile concrete plant to be delivered?
Before your equipment is ordered, you should know the totals for what it will cost, including freight and insurance, to have all the equipment delivered to your exact address or shipping port. We need to specify the exact equipment you are considering for purchase in detail before providing you a freight offer. You would normally obtain an exact freight offer after you have visited me or have seen the equipment in operation. We don’t provide freight quotes until we both know exactly what you need and have been quoted on equipment.
what range size cement Silos you supply?
The regular size is 30T- 300T, and the biggest Bolted Type Silos can up to 1500T .
What kind of spare parts you supply?
All Batching plant parts, including mechanical processing parts, mixer wearing parts, pneumatic fittings, load cell, belt conveyor parts, roller, motors, bearings, electrical elements & cables, switch board and so on
What should I do if experiencing a problem on our batching plant?
Please email or call us what it happen, show us the symptom details and photos, then our engineer will guide you how to cover it. Our service line will be on line 24/7/365.
