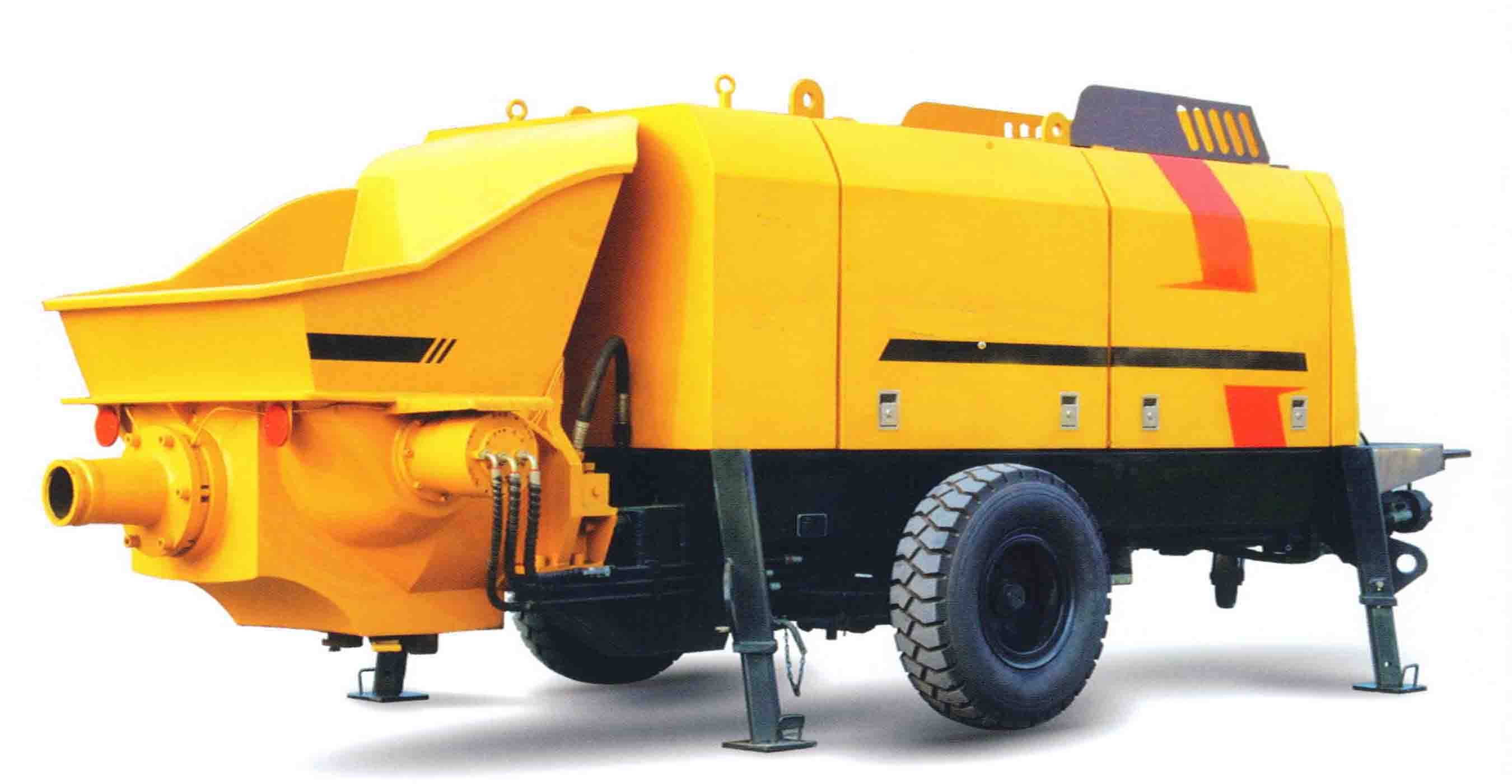

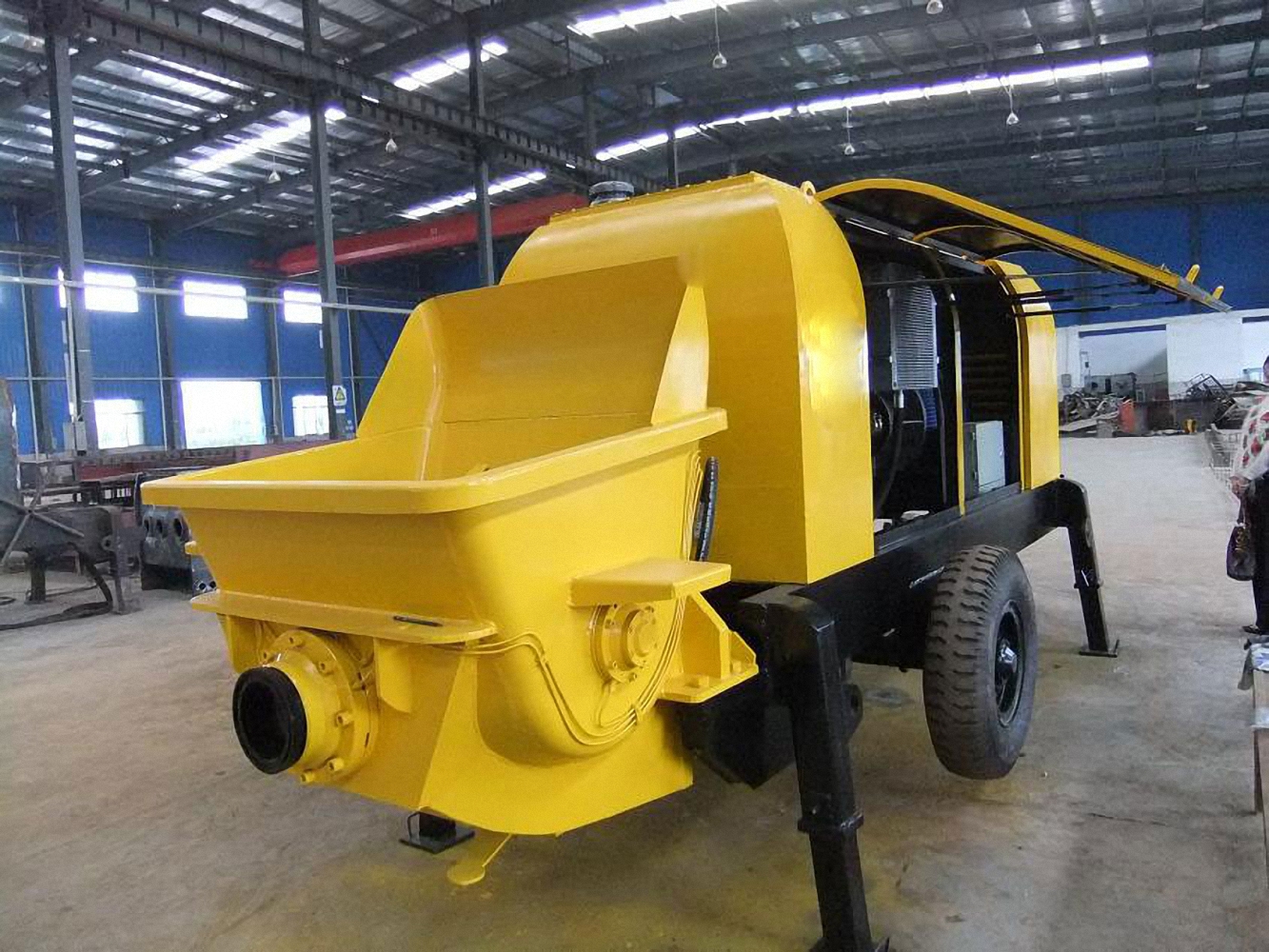

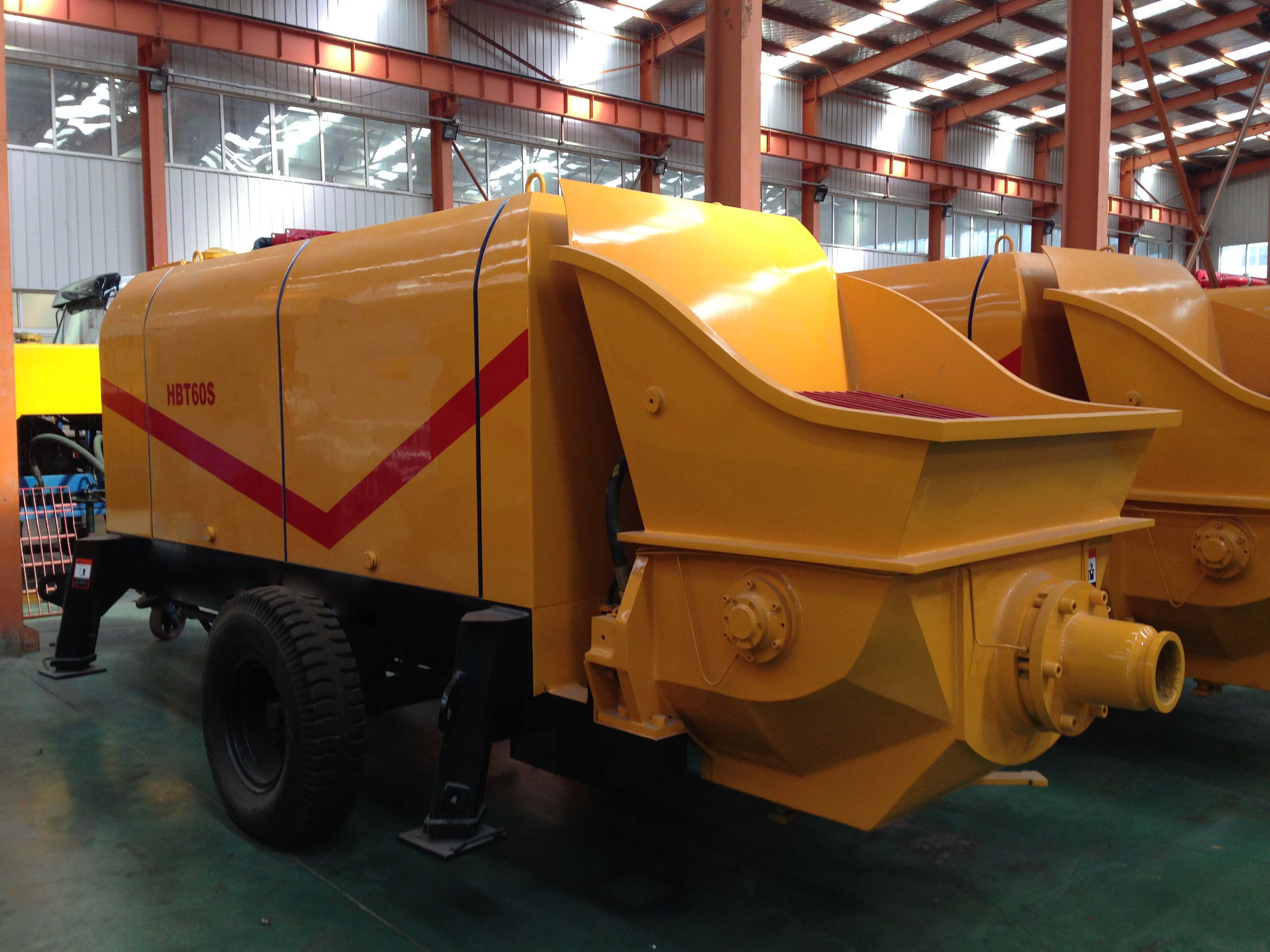

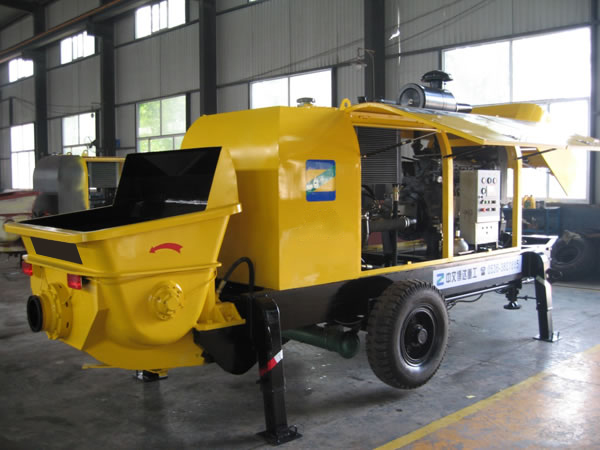

HBT60S1816-110 Trailer Concrete Pump

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Product Overview

HBT60S1816 Trailer mounted concrete pump is a type of concrete pump generally mounted on a single axle or multi-axle trailer and high pressure is used to pump the concrete. These trailers are transported to construction sites by attaching them to a suitable vehicle. These are also called stationary or line or static concrete pumps.
Trailer mounted concrete pumps are available in different pumping capacities ranging from 30 cubic meters per hour to 135 cubic meters per hour. They mounted on a trailer so, they can tow from site to site easily using the appropriate vehicle.

Item Unit HBT60
Theory Concrete Output
(Low / High Pressure)
m3/h 60
Concrete Pressure
(Low / high pressure)
Mpa 13/7.4
Hydraulic system pressure Mpa 32
Rotation speed r/min 1480
High / low pressure switch   Yes
Distribution valve   S valve
Pumping cylinder diameter/ Stroke mm 195/1500
Main oil pump discharge ml/r 110
Motor power kw 145
Voltage/ Frequency V/Hz 380/50
Hydraulic tank volume L 400
Height of adding material mm 1355
Hopper volume m3 0.8
Total mass kg 5800
Concrete slump mm 120-230
Aclinic Delivery distance  m 1200
Theory vertical pumping height m 250
Dimension: L*W*H mm 6240*2110*2550



Features

1. The double pump and double loop hydraulic systems, higher reliability, and ease of fault diagnosis and troubleshooting;
2. With safety overflow and overpressure shutoff device automatically to cut off the main pump to get multi-level protection;
3. Swing the oil pump and accumulator constant pressure while oil, greatly reduce the heat of the hydraulic system, along with energy-saving features;
4. Using suction and return oil filter technology to avoid foreign matter from entering the hydraulic circuit to further improve the reliability of the hydraulic system and component life;
5. Pumping the oil using high and low pressure way valve block switch, convenient, reliable, and not oil;
6. Hydraulic oil forced air cooling, ensure that the oil hydraulic system can be controlled at about 60 degrees.

Why Choose Haomei Machinery.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
FAQ
  • 1. How does Trailer Concrete Pump work?
