JS1500 concrete mixer

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Product Overview

. JS1500 compulsory concrete mixer discharge every 1.5 square, also known as 1.5 square compulsory concrete mixer is developed from our factory according to SICOMA forced mixing console combined with domestic users.
2. The concrete mixer features a high efficiency forced mixing console. As usual HZS75, HZS90 mixing station or host station..
3. The aircraft has a separate stand-alone operation and dual superiority. The PLD concrete batching machine composed of commodity concrete mixing station, which is widely used in medium and large precast plant and highways, bridges, water , terminals and other industrial and civil engineering.

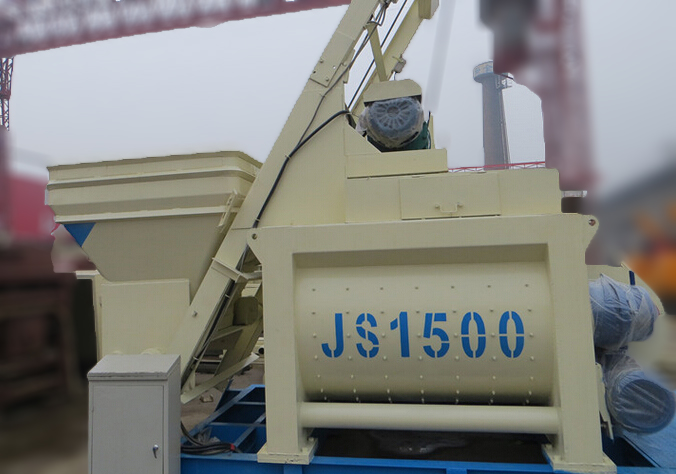

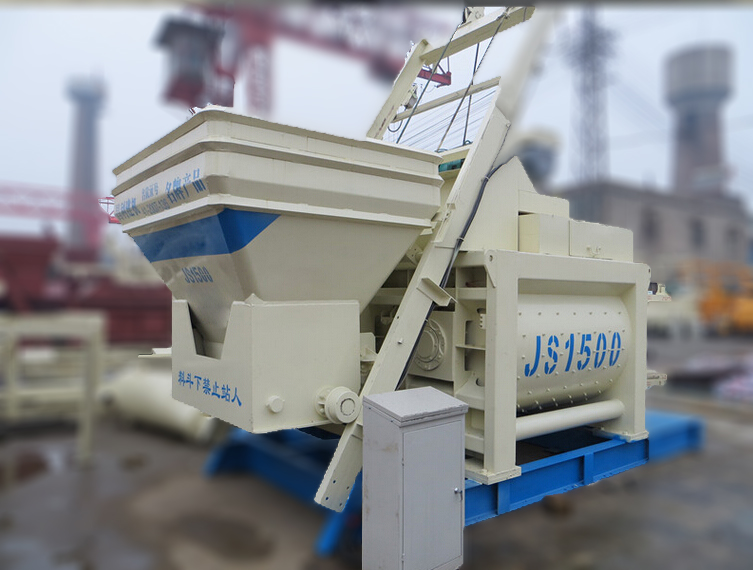

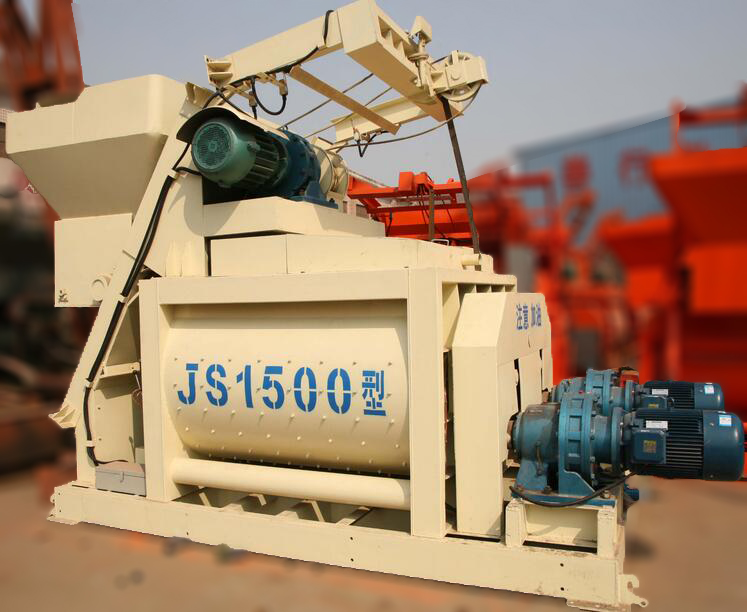

JS1500 Twin-shaft concrete mixers allow achieving a high homogeneity of the mixture (up to 95%) for a period of 60 seconds, and they are also designed to work with aggregate sizes up to 180mm. The mixing intensity is achieved due to the design that moves the mixture simultaneously in three directions. Parts of twin-shaft concrete mixers are subject to less wear because the main mixing takes place in the center of the Twin-shaft concrete mixer. As a result of which friction against the side armor is reduced. Because of this design, it is possible to work with a partial load or restart in a full state.

Specification

Unit

Value

Discharging Volume

L

1500

Charging Volume

L

2400

Mixer Capacity

m3

1.5

Lubrication System

Brand

Choosed

Reducer

Brand

Choosed

Aggregate Size

mm

60/80

Aggregate Compartments

Quantity

4

Working Circle

S

60S

Mixer Motor Power

KW

45

Mixing Speed

r/min

23

Mixing Blade

Quantity

2x9

Lifting Motor Power

KW

18.5

Pump Motor Power

KW

3

Weight

KG

8700

Dimensions

mm

5058x2250x2440



Drawing js1500 Concrete mixer Features

1. Special drum prolongs the service life of the steel wire rope.
2. Precise mechanical parts.
3. High-quality wear-resistant alloy casting parts and advanced production technology ensure the clearance of the mixing blades and the liner plate well-distributed.
4. The test run with dry aggregate supplies sufficient reasons for customers to choose Hamac.
5. Concrete intensity test proves the excellent performance of the mixing equipment.

Applications

JS1500 series concrete mixeris a kind of double shafts forced type mixer, it can be used separately and can be used together with a concrete batching machine to be a simple typeconcrete batching plants. It is being widely used in various scale of prefabricate concrete parts factory, and much construction of road and bridge, dam, port and so on. It could be used to produce dry concrete, plastic concrete, fluidity concrete, lightweight aggregate and various kinds of mortar.

Why Choose Haomei Machinery.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
FAQ
  • 1. How does Concrete Mixer work?
  • 2. What is the price of your JS1500 concrete mixer?
    We have listed the price range of all our concrete mixers on this website for your reference. The final price is affected by multiple factors such as raw materials, exchange rates and freight. If you intend to purchase, please leave us a message and we will update the price for you.
