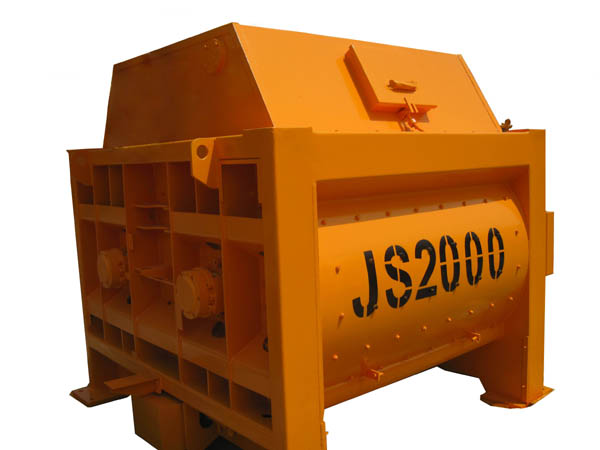

JS2000 Concrete Mixer,2000L double shaft compulsory concrete mixer

Product Overview Features and Applications Strength Packaging and Delivery

Product Overview

JS 2000 concrete mixer has a rational design structure with new arrangement, and is easy to be repaired and used. JS 2000 concrete mixer is composed of double shaft compulsory concrete mixer.
This product cycle period is 60s when discharging. It can mix dry hard concrete plastic concrete flowing concrete and various mortar. It has dual superiorities of working solely or forming simple concrete mixing plant with PLD series batching machine and can also mixer for concrete batching plant. JS2000 used as main part of HZS120 plant.
This series of products can not only be used as a stand-alone use but also be a mixing console to make up a concrete batching plants with series PL concrete batching machine.

Specification	Unit	Value
Discharging Volume	L	2000
Charging Volume	L	3000
Mixer Capacity	m3	2.0
Lubrication System	Brand	Choosed
Reducer	Brand	Choosed
Aggregate Size	mm	60/80
Aggregate Compartments	Quantity	4
Working Circle	S	60S
Mixer Motor Power	KW	45
Mixing Speed	r/min	35.5
Mixing Blade	Quantity	2x7
Lifting Motor Power	KW	21
Pump Motor Power	KW	3
Weight	KG	9200
Dimensions	mm	6500x3875x11510

Drawing

Features

1.This concrete mixer uses high-chromium and high-molybdenum scale boards and stirring pieces, with a long service time.
2. Shaft seal is applied with patented air pressure seal, which can effectively prevent the leakage of mortars.
3. Auto-lubrication system ensures the mixing system can operate continually for a long time.
4. Opening gates mechanism directed by hydraulic can adjust the opening angle of discharging door in accordance with the need, which effectively prevents overspill while discharging the finished materials into truck-mounted concrete mixers.

Applications

The JS2000 concrete mixer is a belt feeding twin -shaft concrete mixer with 60s working cycle time and high mixing efficiency. Each batch can discharge standard 2 cubic meters of concrete. It can mix various grades of concrete, lightweight aggregate concrete and mortar. It is an advanced and reliable large-scale concrete mixer for large-scale project construction. It is appropriate for commercial concrete batching plants
This concrete mixer is ideal for mixing stiff-consistency concrete, semi-stiff-consistency concrete, plastic concrete and other kinds of concrete in different proportional ratios.

Why Choose Haomei Machinery.

Technologies:Top polishing technology guarantees good luster and smooth surface.
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ

1. How does Concrete Mixer work?
2. What is the price of your JS1500 concrete mixer?
We have listed the price range of all our concrete mixers on this website for your reference. The final price is affected by multiple factors such as raw materials, exchange rates and freight. If you intend to purchase, please leave us a message and we will update the price for you.
