JS4000 concrete mixer

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Product Overview

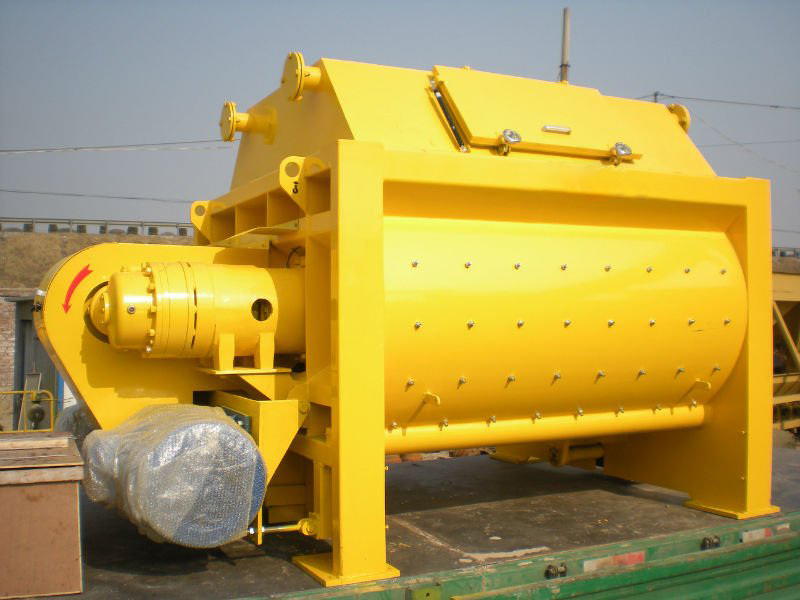

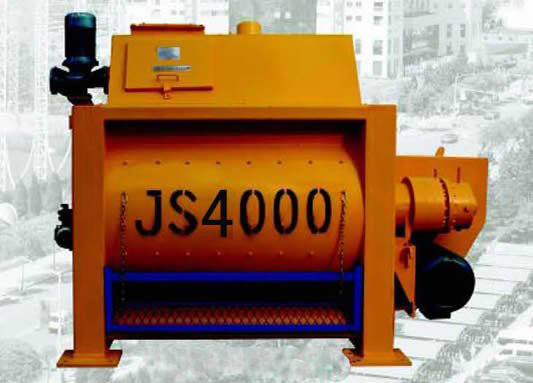

JS4000 series concrete mixer is a kind of double shafts forced type mixer with the mixing capacity of 4 m3/h. It can be used independently or as a vital part of large concrete batching plants.
JS4000 electric concrete mixer is an important concrete mixing machine in our company. Multi-stirring piece design and unique mixing angle make the mixing faster and more uniform, which can improve the production efficiency. Water is injected into the concrete mixer, which accelerates the mixing of water and mix materials as well as thoroughly cleans it.

Specification

Unit

Value

Discharging Volume

L

4000

Charging Volume

L

6400

Mixer Capacity

m3

4.0

Lubrication System

Brand

Choosed

Reducer

Brand

Choosed

Aggregate Size

mm

60/80

Aggregate Compartments

Quantity

4

Working Circle

S

60S

Mixer Motor Power

KW

2x75

Mixing Speed

r/min

31.5

Mixing Blade

Quantity

2x9

Lifting Motor Power

KW

28

Pump Motor Power

KW

3

Weight

KG

13000

Dimensions

mm

3970x2850x2140



Drawing js4000 Concrete mixer Features

1, The main parts of mixing console adopt domestic and foreign advanced manufacturers, professional skills, assembler, tight assembly process, to ensure about the performance excellence of JS4000 concrete mixer.
2, The reducer and motor equipped with a professional manufacturers of high-performance products
3, The shaft bearings made of high quality ductile iron castings, to further improve the impact resistance of the product
4, The use of advanced hydraulic system discharge opening and closing doors facilitate perfusion mixer, in the case of sudden power outages which can also be opened to use a manual pump discharge valve for emergency discharge.
5, The hole and end of concrete mixer tank body were a fixture precision machining, to ensure concentricity stirring shaft ends and the stirring more evenly to keep longer life.
6, Automatic lubrication system, which uses four pumps to ensure a balanced oil pressure of each axis head, running smooth and improve the effectiveness and shaft seal life to achieve the least fuel consumption.

Applications

It is mainly used as mixer body for HZS180 concrete batching plants. It is being widely used in various scale of prefabricate concrete parts factory, and much construction of road and bridge, dam, port and so on. It could be used to produce dry concrete, plastic concrete, fluidity concrete, lightweight aggregate and various kinds of mortar.

Why Choose Haomei Machinery.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
FAQ
  • 1. How does Concrete Mixer work?
  • 2. What is the price of your JS1500 concrete mixer?
    We have listed the price range of all our concrete mixers on this website for your reference. The final price is affected by multiple factors such as raw materials, exchange rates and freight. If you intend to purchase, please leave us a message and we will update the price for you.
