SICOMA Concrete Mixer 2.0m3,heavy duty mixer- Haomei machinery-

Product Overview Features and Applications Strength Packaging and Delivery

Product Overview

The SICOMA twin shaft concrete mixer 2.0 refers to 2 cubic meter concrete per discharge which has the mixing circle of 60 seconds.

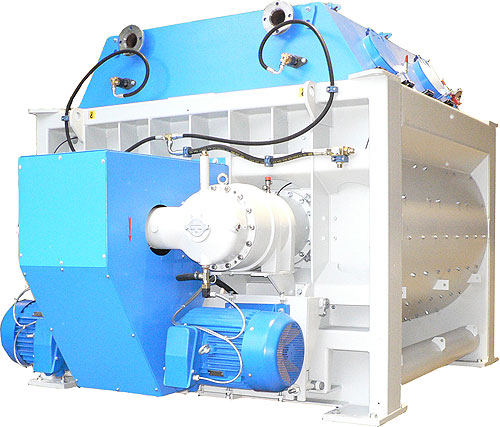

SICOMA MAO twin shaft concrete mixer, cement mixer, is one type of SICOMA twin shaft concrete mixer, mainly consists of mixing system, seal lubricating system, discharge assembly and electrical system.

Specification	Unit	Value
Discharging Volume	L	2000
Charging Volume	L	3000
Mixer Capacity	m3	2.0
Lubrication System	Brand	Choosed
Reducer	Brand	BONFIGLIOLI
Aggregate Size	mm	60/80
Aggregate Compartments	Quantity	4
Working Circle	S	60S
Mixer Motor Power	KW	2x37
Mixing Speed	r/min	35.5
Mixing Blade	Quantity	2x8
Lifting Motor Power	KW	21
Pump Motor Power	KW	3
Weight	KG	7500
Dimensions	mm	2400x3500x2175

Drawing

Features

Mixing Blades in NI-HARD Cast Iron, minimum hardness 600 HB
Mixing arms in Spheroidal Graphite Cast Iron, bolted to the shafts.
Automatic Lubrication System with liquid grease for the mixing shafts'seals, with electrical pump and sequential distributor.
All moving parts of the gearboxes and bearings are permanently lubricated by oil bath.
Mixing Motors with insulating materials class H, Protection Degree IP55, Tropicalised, European Voltage
Hydraulic Power Pack Motor (and Skip Motors, if present) with insulating materials class H, Protection Degree IP55, Tropicalised, European Voltage (400V, 50Hz).

Applications

SICOMA concrete twin shaft mixer is widely used for mixing commercial concrete, premixed concrete, and precast concrete, etc.

Why Choose Haomei Machinery.

Technologies:Top polishing technology guarantees good luster and smooth surface.
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ

1. How does Concrete Mixer work?
2. What is the price of your JS1500 concrete mixer?
We have listed the price range of all our concrete mixers on this website for your reference. The final price is affected by multiple factors such as raw materials, exchange rates and freight. If you intend to purchase, please leave us a message and we will update the price for you.
