SICOMA Concrete Mixer 4.0m3,heavy duty mixer- Haomei machinery-

Product Overview Features and Applications Strength Packaging and Delivery

Product Overview

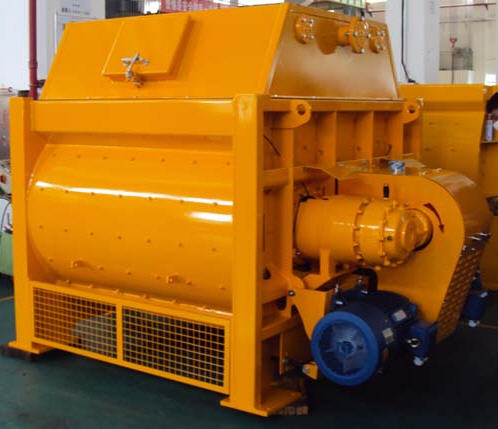

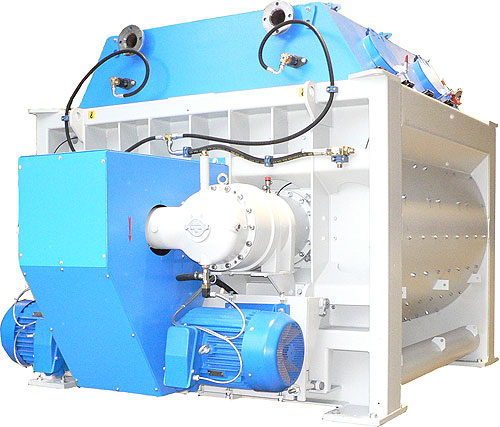

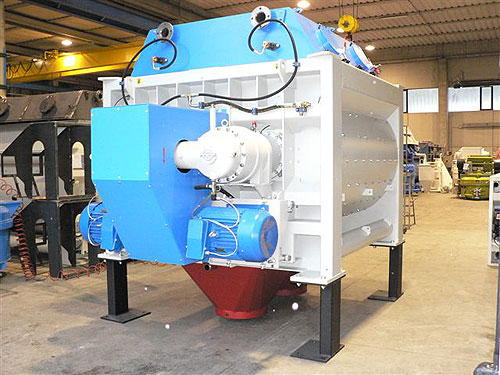

SICOMA twin shaft concrete mixer includes MAO standard, MEO economical and MSO mini commercial concrete mixer which can meet the needs of different customers.
SICOMA 2000-4000 electric concrete mixer is an important concrete mixing machine of SICOMA. Multi-stirring piece design and unique mixing angle make the mixing faster and more uniform, which can improve the production efficiency. Water is injected into the concrete mixer, which accelerates the mixing of water and mix materials as well as thoroughly cleans it.
Different models, different configurations, different prices, it can meet different needs of different customers. We all know SICOMA Indonesia is a world famous Italy brand, so many customers specify that they need SICOMA brand mixer, or they want SICOMA brand mixer to be equipped with their concrete batching plant. We have sold many SICOMA Mixers at home and abroad, it is 100% quality guaranteed.

Specification	Unit	Value
Discharging Volume	L	4000
Charging Volume	L	6000
Mixer Capacity	m3	4.0
Lubrication System	Brand	Choosed
Reducer	Brand	BONFIGLIOLI
Aggregate Size	mm	60/80
Aggregate Compartments	Quantity	4
Working Circle	S	60S
Mixer Motor Power	KW	2x75
Mixing Speed	r/min	31.5
Mixing Blade	Quantity	2x11
Lifting Motor Power	KW	28
Pump Motor Power	KW	3
Weight	KG	11800
Dimensions	mm	2680x4435x2175

Drawing

Features

1. Powerful compulsory spiral mixing action throws particles from each side of the mixer towards the center, where they combine;
2. The water is forced through powerful jets into the mix, where it is absorbed completely, allowing the cement slurry to coat all the aggregate particles uniformly, forming the strongest concrete.
3. Air purged multi seals to enhance bearing life and effectively avoid slurry leakage.
4. Unique monitoring system to monitor the running conditions of gearbox.
5. Automatic multi pump units for shaft lubrication, special pump pin unit design.

Applications

The Sicoma MAO single batch system is a heavy duty mixer ideally suited to mixing a wide range of materials inclusive of recycled materials (tailings). The single batch system features reducible discharge doors on the under-carriage allowing for quality testing of batches or small scale production when required: Applications include: Mixing of paste-fill Mixing of concrete The mixer tank is lined with Ni-hard Cast iron. The mixing arms are low profile to avoid material build up. The twin shafts feature a number of large blades that guarantee effective rolling and circulation of materials during the mixing action.

Why Choose Haomei Machinery.

Technologies:Top polishing technology guarantees good luster and smooth surface.
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ

1. How does Concrete Mixer work?
2. What is the price of your JS1500 concrete mixer?
We have listed the price range of all our concrete mixers on this website for your reference. The final price is affected by multiple factors such as raw materials, exchange rates and freight. If you intend to purchase, please leave us a message and we will update the price for you.
