HZS35 Concrete Batching Plant

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Product Overview

HZS35 concrete batching plant is one of the small-sized plant series of Haomei company. It is semi-automatic concrete mixing block composed by feeding, batching, mixing, electrical control and steel structure components, suitable for small-scale construction projects, precast yard and commercial concrete companies.
This concrete batching plant adopts combined structure and modular unit, convenient to install and remove; Mixing and aggregate lifting system adopts JS750 double-shaft compulsory concrete mixer. It produces 0.75 cubic meter of concrete mix per batch. At the same time, this batching plant transports aggregates skip hoists, which is benefit to reduce footprint and enhance land utilization. The HZS35 is equipped with PLD1200 aggregate bin. Its work platform adopts an all-steel structure; the discharge height can be customized according to the production requirements of concrete.

Specification Value
Productivity(m3/h) 35
Capacity of Mixer(m3) 0.75
Mixer Power(kw) 18.5
Discharge Height(m) 3.8(for customers choice)
Aggregate Bin(Quantity) 3
Aggregate Bin Capacity(m3) 1.2
Max.Weighing Value of Aggregate(kg) 850
Max.Weighing Value of Cement(kg) 500
Max.Weighing Value of Water(kg) 300
Max.Weighing Value of Additive(kg) 30
Aggregate Measuring Accuracy(%) 2
Water Measuring Accuracy(%) 1
Cement Measuring Accuracy(%) 1
Additive Measuring Accuracy(%) 1
Cement Silo(-) Optional
Cement Screw Conveyor(-) Optional
Cement Silo Capacity(-) Optional
Control Mode(-) Optional

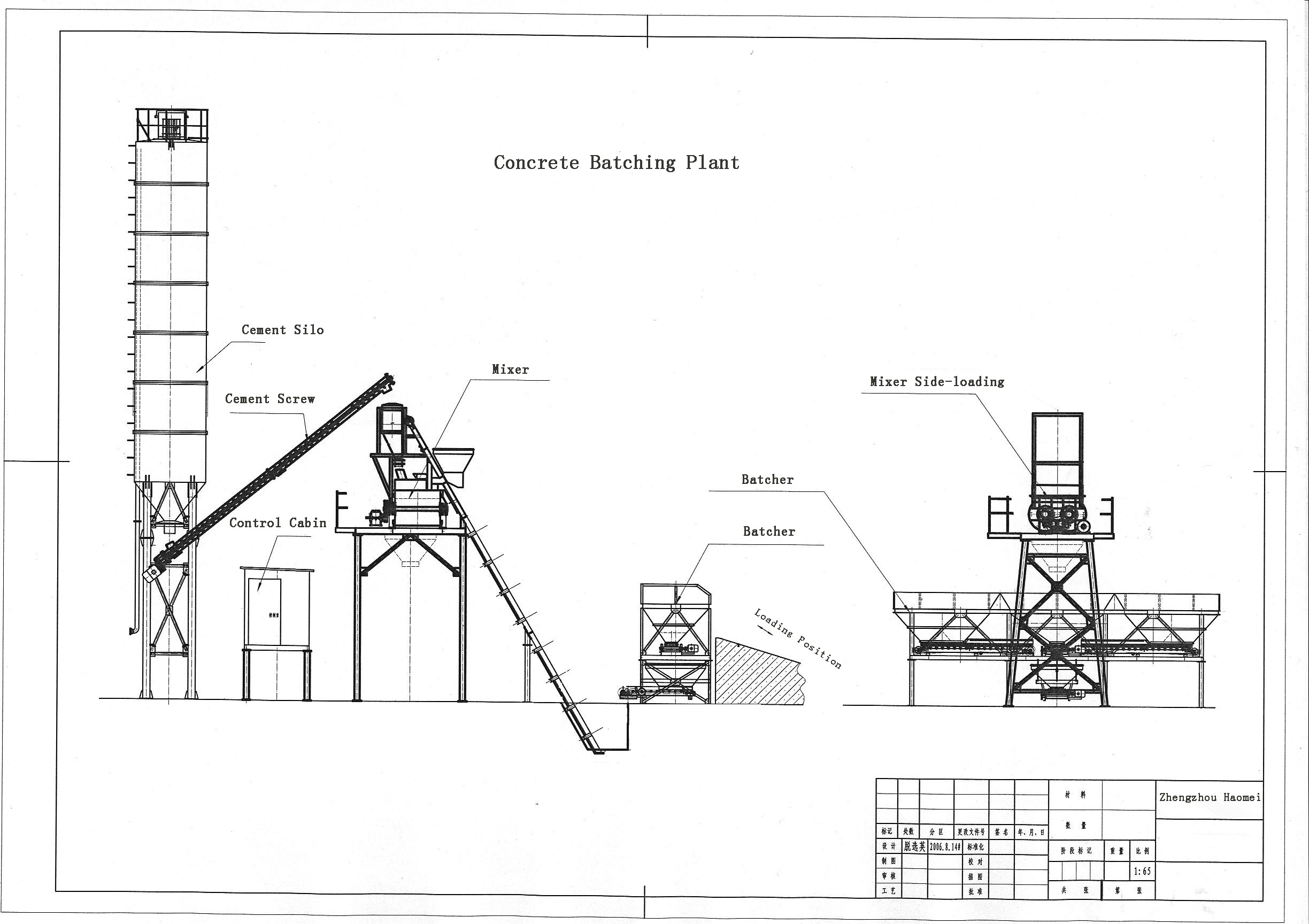

Drawing HZS35 Concrete Batching Plant Drawing Features

Mixing system: adopt JS series Twin-shaft Concrete Mixer for high quality of mixing effect. Assemble ladder, sidewalk and handrail, easily for worker maintenance;
Cement system: adopt separated cement silo and screw conveyor for cement storage and feeding, bulk cement pump can be provided based on customers requirement;
Weighing and control system: adopt new-design of electrical weighing system, can work with computer, SIEMENS PLC, digital display, etc, which will make sure the measurement accurate and timely;
Air system: adopt high quality of air compressor, air pipe and air cylinder, easy installation and maintenance;
Aggregate feeding system: adopt Bucket (Skip Hopper), assemble self-locking hoist motor for bucket up and down, to avoid bucket falls down suddenly;
Concrete discharge height can be design to accommodate truck mixer/concrete pump/skip car.

Applications

This series of concrete batching plant adopts modular structure, widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.

Why Choose Haomei Machinery.
  • Reliability: 20 years of experiences in manufacturing concrete batching plants;
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.
