HZS50 Concrete Batching Plant,JS1000 Concrete Mixer Plant -haomei machinery-

Product Overview Features and Applications Strength Packaging and Delivery

Product Overview

HZS50 Concrete Batching Plant is medium-sized mixing equipment with full-automatic control system.equipped with JS1000 twin-shaft compulsory mixer and PLD1600 aggregate batcher. It transports aggregates with skip hoists, which saves the footprint. The aggregate batcher can be equipped with different numbers of aggregate bins and weighing systems according to the production requirements. In addition, the fully automatic control system automates the production process, meeting the concrete production requirements of different grades and formulations.
HZS50 Concrete Batching Plant, some people call it as JS1000 Concrete Mixer Plant which is a small medium-sized concrete production facility. The JS1000 Twin Shaft Concrete Mixer ensures the high performance of concrete; the PLD1600 independent weighing hopper batcher batch weighing sand and gravel, ensure precision and efficiency.The concrete mixer of HZS50 ready mixed concrete batching plant: has the strong mixing ability with uniform mixing and high production output.a high degree of automation, good mixing quality, high efficiency, low energy consumption, low noise, easy operation, discharge speed, liner and leaves long life, easy maintenance and so on
HZS50 Concrete Plant can produce concrete in the harshest environment to meet engineering needs. Thanks to its large output, small footprint, stability and durability, HZS50 Batching Plant is selected by various engineering contractors as well as concrete supply and concrete product companies.

Model	HZS50
Specification	Unit	Value
Productivity	m3/h	50
Capacity of Mixer	m3	1
Mixer Power	kw	37
Discharge Height	m	3.8(for customers choice)
Aggregate Bin	Quantity	3
Aggregate Bin Capacity	m3	1.6
Max. Weighing Value of aggregate	kg	3000
Max. Weighing Value of cement	kg	600
Max. Weighing Value of water	kg	400
Max. Weighing Value of additive	kg	50
Aggregate Measuring Accuracy	%	2
Water Measuring Accuracy	%	1
Cement Measuring Accuracy	%	1
Additive Measuring Accuracy	%	1
Cement Silo	_	Optional
Cement Screw Conveyor	_	Optional
Cement Silo Capicity	_	Optional
Control Mode	_	Auto/Semi control

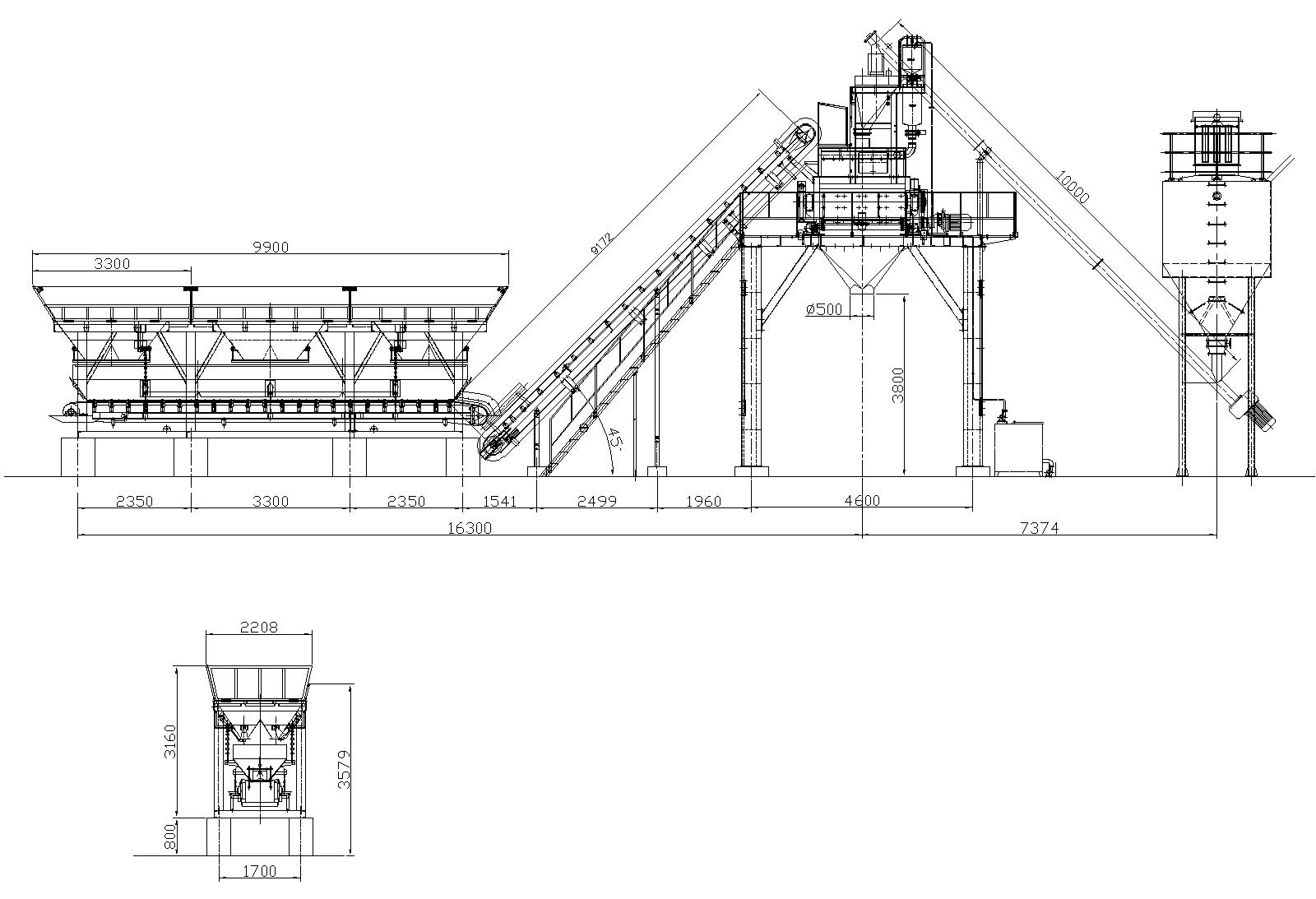

Drawing

Features

1.The concrete batch plant adopts knockdown structure and blocking.
2.The machine adopts JS type of concrete mixer, it has good mixing quality and high efficiency.
3.The batching machine adopts PLD type concrete batch machine, it is measuring nicety and high produce efficiency.
4.The forced water supply system spray equably and has washing function for the mixing system.
5.It adopts the electric weigher to measure all the aggregate cement water liquid additive.
6.The electrical system adopts import parts and has credibility performance

Applications

HZS50 Concrete Batching Plant has the advantages of performances such as work stable, compact structure, small footprint, easy transition, ect. It applies in medium-sized or temporary projects, prefabricated parts factories, small commercial concrete plant and so on.

On site service of engineering concrete batching plant:

We will dispatch 1 technician to your place to guide the installation, testing and training your operator. Buyer to pay for round air ticket, board (meals), lodging expenses and a daily allowance of USD$100 per person per day for our service engineer.

Normally it will take 10-15 working days to finish the installation and commissioning of 50m3 wet concrete batching plant.

Why Choose Haomei Machinery.

Reliability: 20 years of experiences in manufacturing concrete batching plants;
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ

1. How much is the concrete batching plant?
The price of the concrete plant is affected by multiple factors, such as raw material cost, logistics transportation cost, labor cost, ect. In addition, the configuration of the concrete plant is adapted to the customer's demands. Due to different configuration, which means that the price is changed, so we are unable to provide online quotes. We will send you the configuration plan and quotation after you send us your requirements.
How much will it cost for the machine to be delivered?
Before your equipment is ordered, you should know the totals for what it will cost, including freight and insurance, to have all the equipment delivered to your exact address or shipping port. We need to specify the exact equipment you are considering to purchase in detail before providing you a freight offer. You would normally obtain an exact freight offer after you have visited me or have seen the equipment in operation. We don’t provide freight quotes until we both know exactly what you need and have been quoted on equipment.
What is the different between HZS50 and HZS60 concrete plant?:
HZS50 and HZS60 concrete batching plant are equipped with JS1000 compulsory concrete mixer, concrete mixer is the main equipment to distinguish the type of mixing station, but also an important factor in price differences. HZS50 and HZS60 concrete batching plant in addition to feeding in different ways, other configurations are the same. This is based on the customer's production requirements to the actual distinction. If the customer wants slightly larger output of the concrete batching plant, while the venue is relatively large, you can use a large angle belt loading, built HZS60 concrete batching plant,the hourly production can reach 55m3 or more, and if the client's own venue is limited, You can consider the construction of a HZS50 concrete batching plant, the same can meet the requirements, and the equipment use of bucket feeding way, small footprint, can save construction space, to help you use a small site to achieve the value of large use.
