HZS75 Concrete Batching Plant,JS1500 Concrete Mixer Plant -haomei machinery-

Product Overview Features and Applications Strength Packaging and Delivery

Product Overview

HZS75 Concrete Batching Plant adopts JS1500 twin-shaft mixer and PLD2400 aggregate batcher. It transports aggregates with skip hoists, which saves footprint of a concrete plant. The HZS75 concrete plant is not only accurate in measurement, but also has functions such as automatic compensation of drop, sandstone moisture content compensation, ect. In addition, there is no manual work required, because it adopts a fully automatic control system and diversified control methods could meet the needs of the customers' manual control.

Type	HZS75
Productivity in theory	75m³/h
Mixer	JS1500
Total power	130KW
Maximum aggregate diameter	80mm
Aggregate feeding method	Skip hopper
Batcher	PLD1200
Aggregate weighing	6000kg ±2%
Cement(plus fly-ash) weighing	1000kg ±1%
Water weighing	500kg ±1%
Overall dimension(during operating) (LXWXH)	25.9mX9.2mX11.1m
Overall dimension(during operating) (LXWXH)
Discharging height	3.8m
Total weight	50T
Control	Fully automatic central control
Cement silo(optional)	Required on clients' demand
Cement screw(optional)	Each cement silo equipped with one φ219 screw

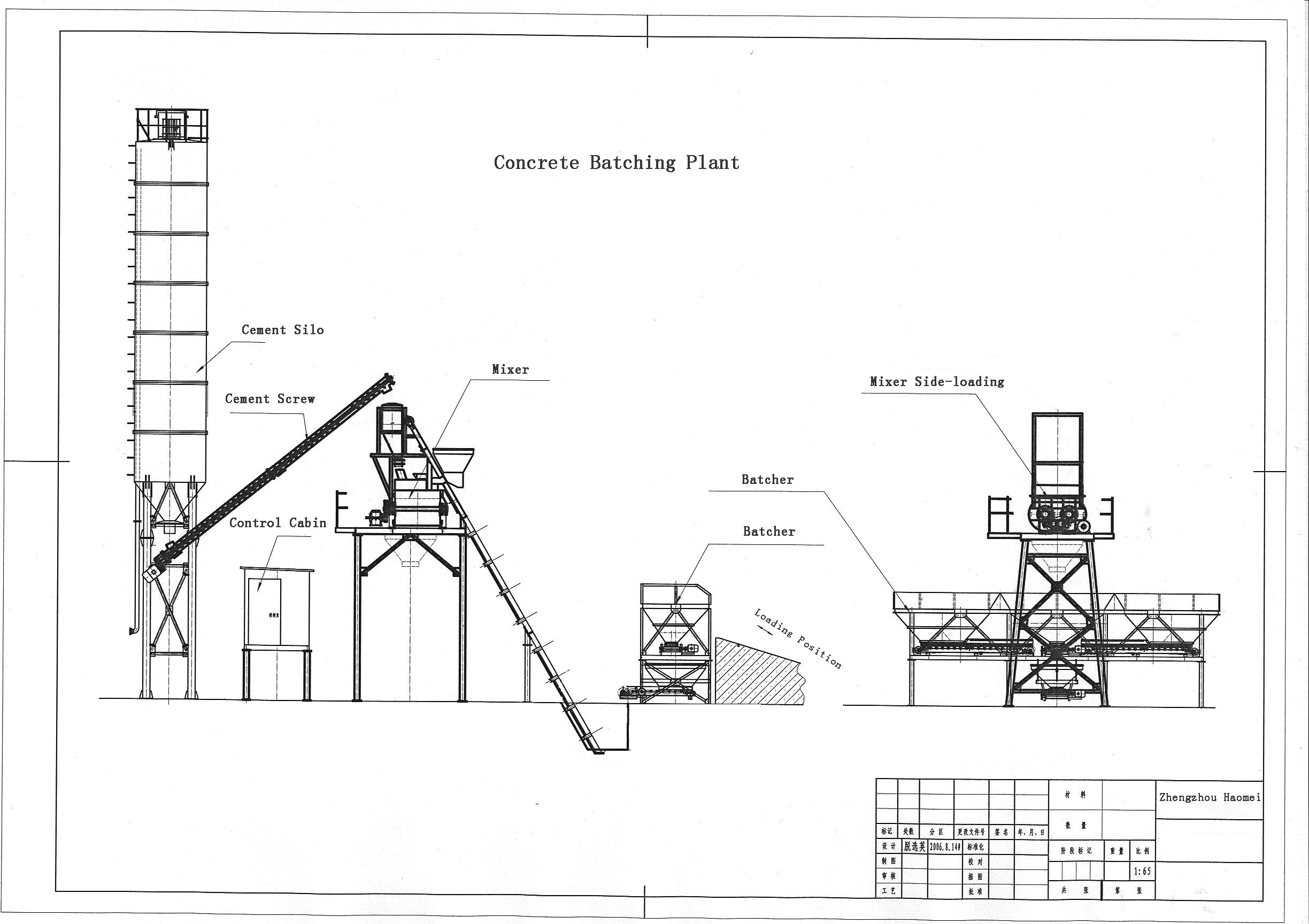

Drawing

Features

1.Adopt modular structure, installation and relocation is very convenient.
2.Using JS double shaft concrete mixer with PLD series concrete batching machine, accurate measurement and mixing of good quality and high production efficiency.
3.It can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency.
4.The overall structure is compact and fashionable, the layout is reasonable.
5.The operation is safe and reliable, its more easy to maintain.

Applications

HZS75 concrete batching plant has the advantages of high integration, energy saving, small footprint, accurate measurement and convenient operation, which is widely used in medium and large-scale and temporary projects, roads, bridges, railways and water conservancy projects, etc. Moreover, it can be used as commercial concrete plants.

Why Choose Haomei Machinery.

Reliability: 20 years of experiences in manufacturing concrete batching plants;
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ

1. What is the price of an HZS75 concrete batching plant?
The price of the concrete plant is affected by multiple factors, such as raw material cost, logistics transportation cost, labor cost, ect. In addition, the configuration of the concrete plant is adapted to the customer's demands. Due to different configuration, which means that the price is changed, so we are unable to provide online quotes. We will send you the configuration plan and quotation after you send us your requirements.
How about the installation and commissioning if i buy the HZS75 concrete plant?
We will dispatch our after-sale service engineers to guide the installation, commissioning and training your operator on site. You should pay for round air ticket, board(meals), lodging expenses and a daily allowance of USD$100 per person per day for our service engineer.
what range size cement Silos you supply?
The regular size is 30T- 300T, and the biggest Bolted Type Silos can up to 1500T .
What kind of spare parts you supply?
All Batching plant parts, including mechanical processing parts, mixer wearing parts, pneumatic fittings, load cell, belt conveyor parts, roller, motors, bearings, electrical elements & cables, switch board and so on
What should I do if experiencing a problem on our batching plant?
Please email or call us what it happen, show us the symptom details and photos, then our engineer will guide you how to cover it. Our service line will be on line 24/7/365.
