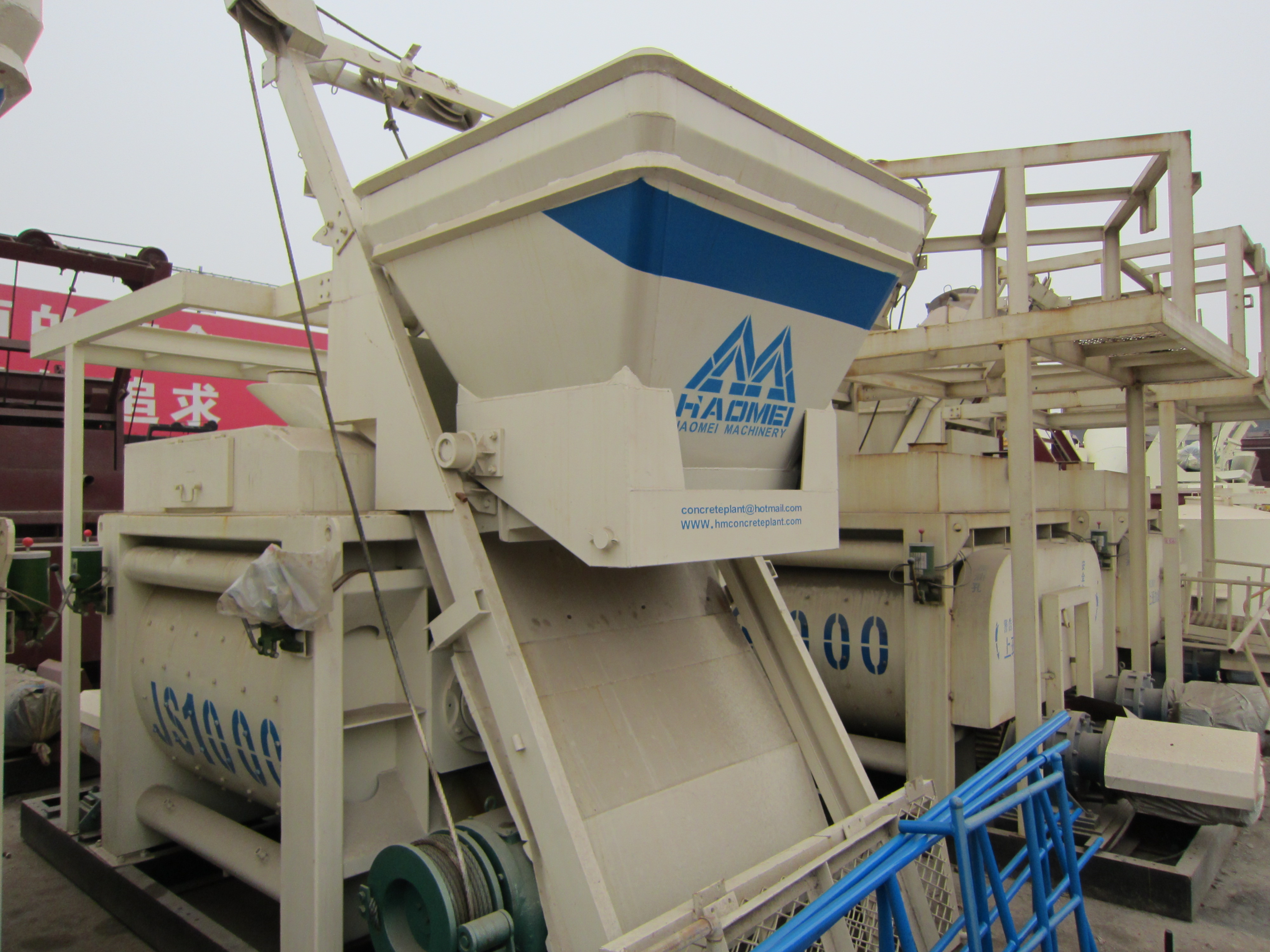

JS1000 Concrete Mixer,1000L Twin Shaft horizontal forced type mixer

Product Overview Features and Applications Strength Packaging and Delivery

Product Overview

JS1000 concrete mixer, one kind of twin shaft compulsory concrete mixer, has a wide rage of applications in mixing dry-hard and light-weight aggregate concrete with an intense agitation and homogeneous mixing effect. JS1000 twin shaft compulsory mixer is a new type of concrete mixer that has integrated international advanced concrete technology with a reasonable structure design and exquisite technique, . which usually equipped with a skip hoist as well as a work platform and outriggers. It mix 1000 liters of concrete mix per batch and can work independently or form a small concrete batching plant with other components. It can mix dry hard concrete, plastic concrete, flowing concrete, light weight aggregate concrete and various mortar, it is a high-efficiency machine with wide application. It has dual superiorities of working solely or forming simple concrete mixing plant with PLD1600 batching machine, and can also mixer for concrete batching plant. It has JS1000A and JS1000B two models. JS1000A can be used alone or as main mixing part of HZS50 concrete batching plant . While JS1000B used as main mixing part of HZS60 concrete batching plant.
JS1000 series concrete mixer is an advanced and ideal mixing device. The equipment is adapted for mixing plastic, hard and soft concrete, plaster and slurry. The JS1000 concrete mixer adopts motor unloading and works with a dump truck. It is the ideal type for different types of construction site. High automation, good effect, high efficiency, low consumption, low-noise, convenient operation, fast unloading, long pad and blade life, convenient maintenance, etc.
This machine adopts compact structure and new design, easy to operate and maintain. And we also offer some changes for this machine according to our customers’ requirements.

Specification	Unit	Value
Discharging Volume	L	1000
Charging Volume	L	1600
Mixer Capacity	m3	1.0
Lubrication System	Brand	Choosed
Reducer	Brand	Choosed
Aggregate Size	mm	60/80
Aggregate Compartments	Quantity	4
Working Circle	S	60S
Mixer Motor Power	KW	37
Mixing Speed	r/min	25.5
Mixing Blade	Quantity	2x8
Lifting Motor Power	KW	11
Pump Motor Power	KW	3
Weight	KG	7880
Dimensions	mm	4640x2250x2250

Drawing

Features

Thicker mixing shaft: In order to ensure the wear resistance of the mixing shaft, our company adopts the special high-chromium wear parts that chromium content ≧ 26%. The mixing shaft has been fundamentally optimized, the diameter is 10mm thicker than the domestic industry.
High mixing efficiency: CamelWay Machinery independently research and develop mixer reducer planetary transmission method and adopts well-known domestic manufacturers rotary support to ensure the reliable quality. All gears have been under grinding processing. It has the characters of low running noise, large output torque, high stability, and make it suitable for a variety of high-intensity, high-load working conditions.
Simple centralized control: It adopts the centralized control box which is full-featured and simple and easy to operate. The components adopts domestic well-known brands and imported brands, making it a greater helper in the mixer production process.
Shaft end sealing: Shaft end sealing mainly consists of wear-resistant rubber, labyrinth seal and floating seal multi-seal combination. The structure is solid and reliable and durable,and do not leak pulp. All seals are easy to disassemble and replace, making it more suitable for all kinds of bad working conditions. Enhance motor and enhance hopper: Our company adopts the independent research and development enhance motor. It has the characters of large output torque, high stability, large enhance hopper capacity, short track and higher efficiency.
Wearing parts: The mixing arm adopts high strength wear-resistant steel castings and oval design to ensure smaller material resistance, more smooth flow, thick solid and long service life. Lining adopts thicker design, and the material adopts high chromium wear alloy cast iron that has excellent wear resistance and impact resistance.

Applications

JS1000 twin shaft concrete mixerare used in concrete batching plantss to produce various concrete types like ready-mix concrete, precast concrete, roller compacted concrete (RCC), self-consolidating concrete (SCC), heavy concrete, etc.
This machine can also offer the main mixing machine for concrete mixing plant, which can be used in small, medium and big business factories.
Fields of concrete mixing machine are road, bridge, port, subway, real-estate building industrial areas.

Why Choose Haomei Machinery.

Technologies:Top polishing technology guarantees good luster and smooth surface.
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ

1. How does js1000 Concrete Mixer work?
The js1000 Concrete mixer is a double-shaft forced concrete mixer. Through reasonable design, the mixing efficiency is high, and the quality of the stirred concrete is fine and uniform. But how does js1000 concrete mixer work? Do you know?
1. Feeding sand and gravel loading is manual feeding, small dump truck picking up; water is pumped by the js1000 mixer water pump to the top tank, and the water is manually operated; the cement is directly dumped into the mixer hopper by manual unpacking.
2. The weighing sand and gravel are weighed by the weight of the manual push trolley; the cement is measured by 50kg per pack; the water is quantified by the water tank scale. Weighing error: 2% for cement, 3% for sand and stone, and 2% for water admixture.
3. The aggregate sand and cement are poured into the hopper of the mixer. The wire rope pulling hopper climbs upwards. When climbing to a certain height, the hopper enters the loading frame, the door is automatically opened, and the material is discharged into the mixing drum through the funnel while pushing the sluice enters the water.
The material is generally mixed for 58s. When the concrete mixture is stirred evenly, it can be discharged.
The mixer is the bottom opening and unloading, which avoids the tilting of the mixing drum, which is safe and labor-saving, and simplifies the structure. The arrangement is more compact and reasonable. The concrete falls into the transport trolley and is sent to the on-site pouring place.
The use of the js1000 mixer alone requires a lot of manual participation. It is recommended that you can use the PLD800 concrete batching machine together to achieve automation, greatly improve productivity, and be safe and reliable.if you want more information, please email wade@haomei.biz
2. What is the price of your JS750 concrete mixer?
We have listed the price range of all our concrete mixers on this website for your reference. The final price is affected by multiple factors such as raw materials, exchange rates and freight. If you intend to purchase, please leave us a message and we will update the price for you.
