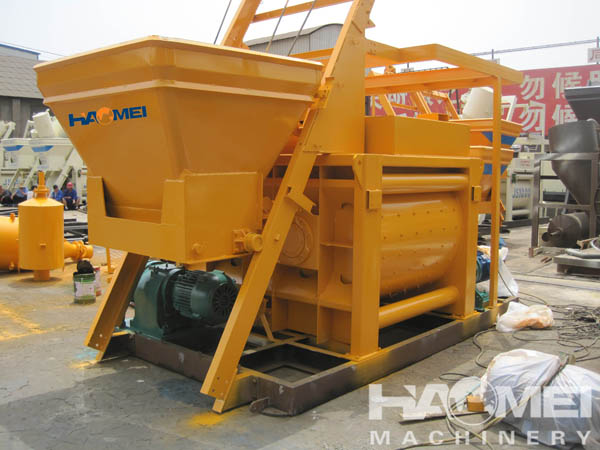

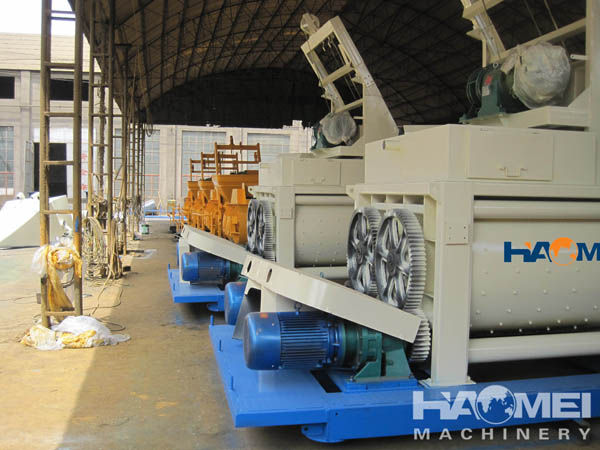

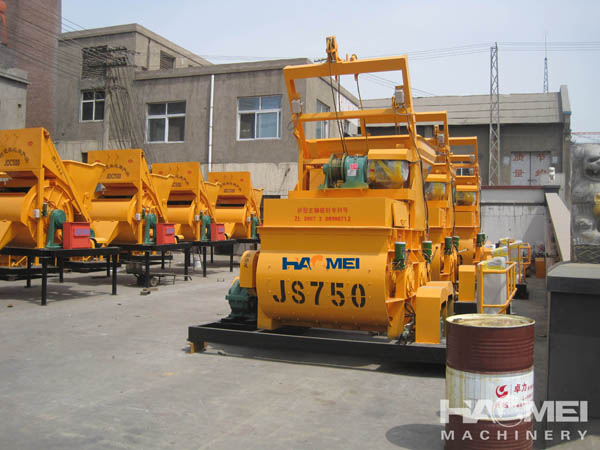

JS750 concrete mixer,750L Twin Shaft horizontal forced type mixer

Product Overview Features and Applications Strength Packaging and Delivery

Product Overview

JS750 twin shaft compulsory mixer is a new type of concrete mixer that has integrated international advanced concrete technology with a reasonable structure design and exquisite technique, . which usually equipped with a skip hoist as well as a work platform and outriggers. It mix 750 liters of concrete mix per batch and can work independently or form a small concrete batching plant with other components. It can mix dry hard concrete, plastic concrete, flowing concrete, light weight aggregate concrete and various mortar, it is a high-efficiency machine with wide application. It has dual superiorities of working solely or forming simple concrete mixing plant with PLD1200 batching machine, and can also mixer for HZS35 concrete batching plant. The JS750 twin-shaft concrete mixer is designed to meet the small batch concrete production requirements of the ready mix and precast industry.

Specification	Unit	Value
Discharging Volume	L	750
Charging Volume	L	1200
Mixer Capacity	m3	0.75
Lubrication System	Brand	Choosed
Reducer	Brand	Choosed
Aggregate Size	mm	60/80
Aggregate Compartments	Quantity	4
Working Circle	S	60S
Mixer Motor Power	KW	30
Mixing Speed	r/min	30.5
Mixing Blade	Quantity	2x8
Lifting Motor Power	KW	7.5
Pump Motor Power	KW	1.1
Weight	KG	6150
Dimensions	mm	4550x2250x2450

Drawing

Features

1) High mixing evenness, short mixing time, High Reliability with least Break Down, long life span for wearing parts, easy operation and maintenance.
2) Hydraulic discharge，Manual discharging for options，the hydraulic discharging door angle is adjustable.
3) High Wear-Resistant Chromium-Manganese Alloys Plates and Blades.
4) The shaft end sealing system is by multi-sealing structure effectively prevents leakage and guarantees the continuous long running of whole mixing system.
5) Motor and speed reducer are of china famous brand. Full Copper Motors, Stable and Long Life.

Applications

This series is a JS750 Twin Shaft forced-type concrete mixer for mixing hard, ductile and liquid concrete, light aggregate concrete and all types of mortars. The plate inside the mixing drum body and mixing blades are composed of manganese steel, durable and easy to replace. This JS750 Twin Shaft Concrete Mixer can form a variety of concrete batching plants, suitable for utilizing in large and medium-sized precast factories as well as various construction sites, roads, bridges, airports, tunnels and other construction sites.

Why Choose Haomei Machinery.

Technologies:Top polishing technology guarantees good luster and smooth surface.
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ

1. How does JS750 Concrete Mixer work?
The JS750 Concrete mixer is a double-shaft forced concrete mixer. Through reasonable design, the mixing efficiency is high, and the quality of the stirred concrete is fine and uniform. But how does JS750 concrete mixer work? Do you know?
1. Feeding sand and gravel loading is manual feeding, small dump truck picking up; water is pumped by the JS750 mixer water pump to the top tank, and the water is manually operated; the cement is directly dumped into the mixer hopper by manual unpacking.
2. The weighing sand and gravel are weighed by the weight of the manual push trolley; the cement is measured by 50kg per pack; the water is quantified by the water tank scale. Weighing error: 2% for cement, 3% for sand and stone, and 2% for water admixture.
3. The aggregate sand and cement are poured into the hopper of the mixer. The wire rope pulling hopper climbs upwards. When climbing to a certain height, the hopper enters the loading frame, the door is automatically opened, and the material is discharged into the mixing drum through the funnel while pushing the sluice enters the water.
The material is generally mixed for 58s. When the concrete mixture is stirred evenly, it can be discharged.
The mixer is the bottom opening and unloading, which avoids the tilting of the mixing drum, which is safe and labor-saving, and simplifies the structure. The arrangement is more compact and reasonable. The concrete falls into the transport trolley and is sent to the on-site pouring place.
The use of the JS750 mixer alone requires a lot of manual participation. It is recommended that you can use the PLD800 concrete batching machine together to achieve automation, greatly improve productivity, and be safe and reliable.if you want more information, please email wade@haomei.biz
2. What is the price of your JS750 concrete mixer?
We have listed the price range of all our concrete mixers on this website for your reference. The final price is affected by multiple factors such as raw materials, exchange rates and freight. If you intend to purchase, please leave us a message and we will update the price for you.
